RUiXU | Busbar | 3/8" (M10) Terminal Studs | 600A (work with OP140 or OP200) | ONE PAIR

RUiXU Busbar | 3/8" (M10) Terminal Studs | 600A (Compatible with OP140 or OP200)

The RUiXU 600A Busbar is a high-capacity power distribution component engineered for heavy-duty battery and inverter systems. Built for professional-grade energy setups, it features 3/8" (M10) terminal studs, a durable insulated base, and nickel-coated copper construction to ensure superior conductivity, stability, and safety under high-current loads.

Capable of supporting up to 600 amps continuous, this dual busbar set (red and black) provides a clean, organized, and reliable solution for connecting large battery banks, solar charge controllers, or inverter power systems. Ideal for off-grid, marine, or industrial applications, the RUiXU Busbar is designed to work seamlessly with models like OP140 and OP200, delivering uncompromising performance and protection.

Key Features

• 600A High Current Capacity: Supports continuous 600-amp operation for power-hungry systems and high-load DC circuits.

• 3/8" (M10) Terminal Studs: Large stud size accommodates heavy-gauge cable lugs and ensures tight, stable connections.

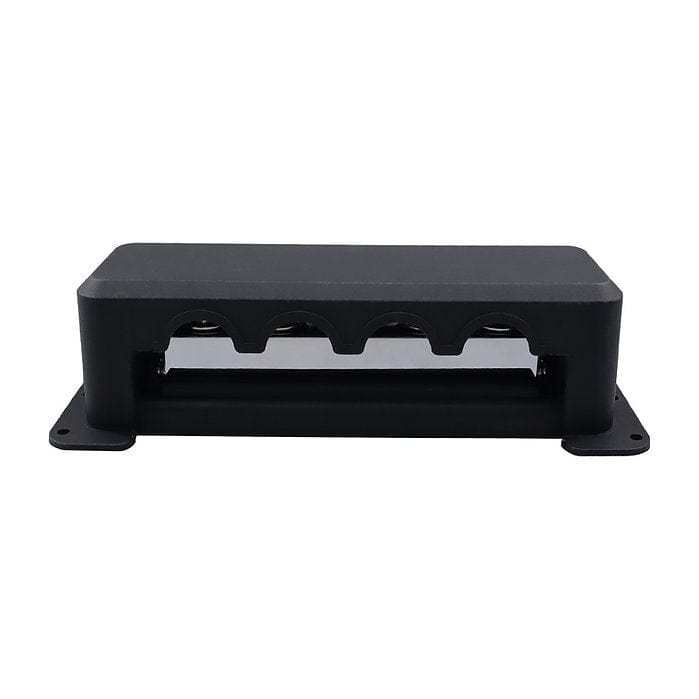

• Protective Insulated Covers: Includes removable red and black covers to prevent accidental contact and improve safety.

• Dual Busbar Set: Comes with one positive (red) and one negative (black) busbar for organized wiring and easy identification.

• Heavy-Duty Construction: Built from highly conductive nickel-coated copper with a reinforced polymer mounting base for superior durability and performance.

• Compatible Design: Optimized for use with RUiXU OP140, OP200, and other high-capacity battery systems.

Applications

• High-Power Battery Banks: Connect and distribute power across large-scale energy storage systems.

• Inverter Installations: Route clean DC power to and from inverters for solar or hybrid setups.

• Off-Grid Solar Power Systems: Efficiently manage current flow between solar charge controllers, batteries, and inverters.

• RV and Marine Power Distribution: Simplifies wiring and provides safe current distribution for high-amp circuits.

• Commercial and Industrial Systems: Suitable for large-scale solar arrays, backup power systems, and heavy-duty electrical infrastructure.

What’s Included

• (1) RUiXU 600A Busbar – Red (Positive)

• (1) RUiXU 600A Busbar – Black (Negative)

• (1) User Manual

Specifications

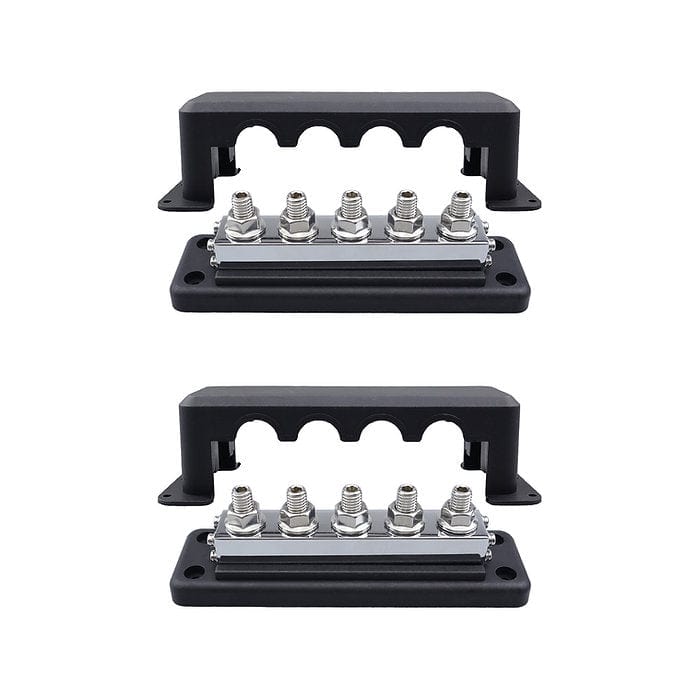

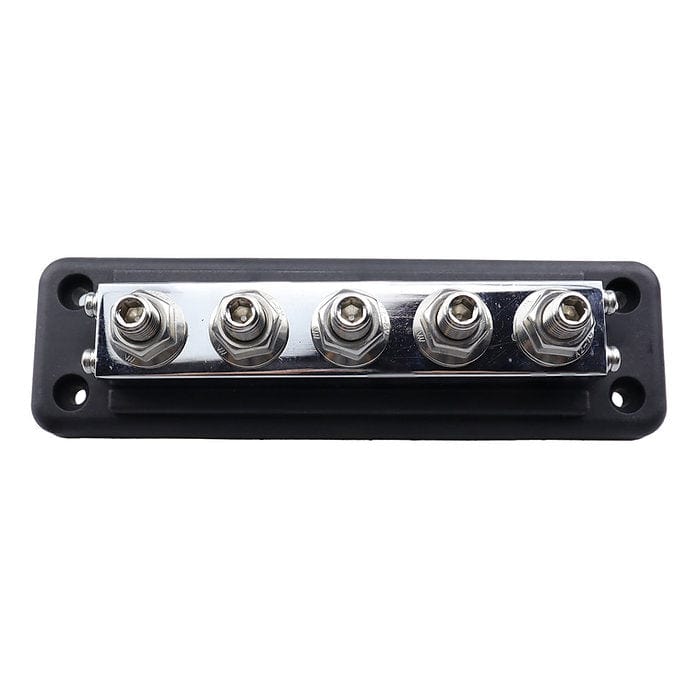

Model RX5600
Dimensions (W × D × H): 2.2 × 8 × 2.2 in (55 × 204 × 56 mm)
Weight: 1.7 lb (0.75 kg)
Description: Heavy-duty 5-post power/ground distribution busbar with (x5) 3/8" terminal posts and (x4) 14mm fastening nuts. Constructed from nickel-coated copper with a robust polymer base and removable protection cover.

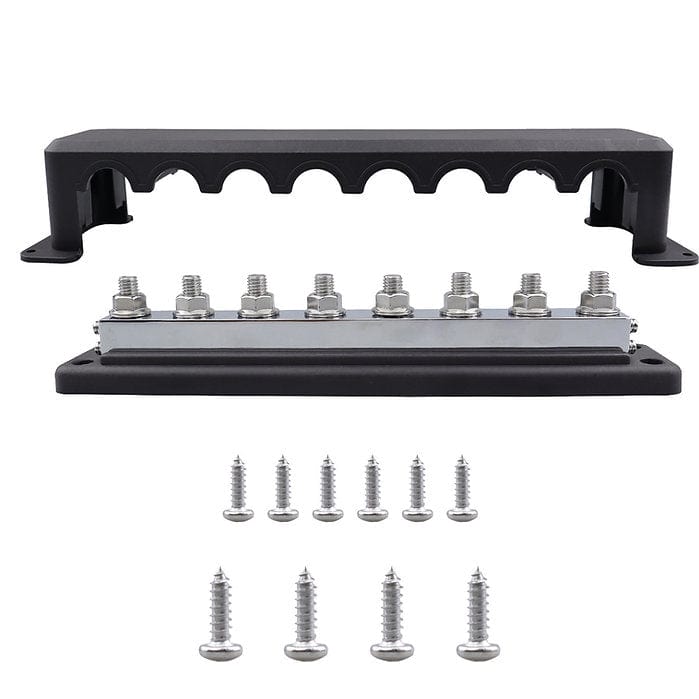

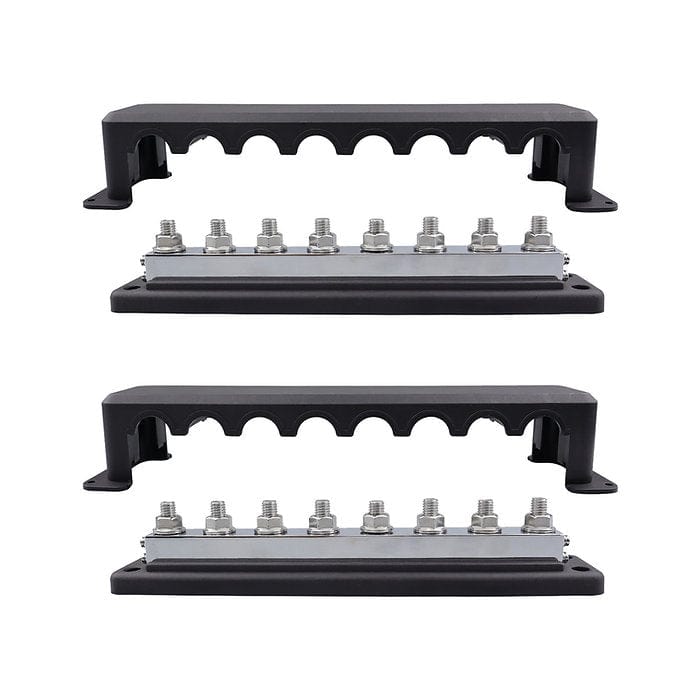

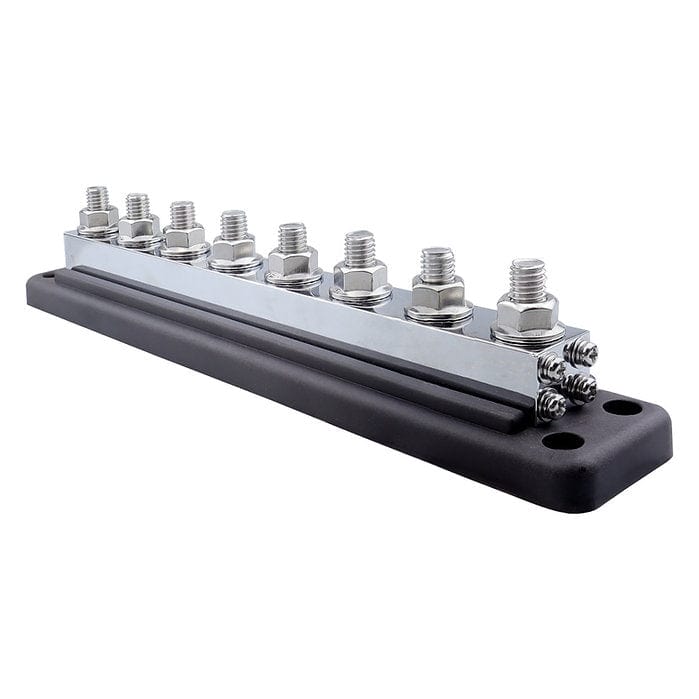

Model RX8600
Dimensions (W × D × H): 2.2 × 12.4 × 2.2 in (56 × 316 × 56 mm)
Weight: 2.9 lb (1.3 kg)
Description: Heavy-duty 8-post power/ground distribution busbar with (x8) 3/8" terminal posts and (x8) 14mm fastening nuts. Features the same durable copper and polymer construction with removable protection cover.

Shipping Restriction
Ships with battery orders only. Contact us for standalone shipping rates.

Frequently Asked Questions
Can this busbar handle continuous 600A loads?
Yes, it is rated for 600A continuous current, making it ideal for high-power DC systems.

Is this busbar compatible with 48V systems?
Yes, it supports 12V, 24V, and 48V DC systems, including solar, RV, and inverter applications.

Are protective covers included?
Yes, each busbar comes with red and black insulated covers to ensure user safety and compliance with electrical standards.

Can this be mounted to a panel or wall?
Yes, pre-drilled mounting holes are included for secure installation on flat surfaces.

Is it compatible with RUiXU OP140 or OP200 batteries?
Yes, the busbar is specifically designed to integrate cleanly with OP140 and OP200 battery configurations.
