Description
xFountain Features
- Floating lake fountain designed for large-scale commercial application.
- Available in 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, and 15 HP.
- Suggested LED Lighting Packages:
- 3 lights for 2 HP and 3 HP
- 4 lights for 5 HP and 7.5 HP
- 5 lights for 10 HP and 15 HP
| Motor HP | Center Height | Side Height | Spray Diameter |
| 2 | 15' | 8' | 15' |
| 3 | 20' | 10' | 20' |
| 5 | 25' | 12' | 25' |
| 7.5 | 30' | 15' | 30' |
| 10 | 40' | 18' | 35' |
| 15 | 45' | 20' | 40' |
Warranty Coverage
All Vertex floating lake fountain designs go through extensive production quality control processes as well as continued testing after installation to ensure your product lasts.
- Display heads: 4-years
- Pumps and motors: 4-years
- LED Lighting: 2-years
- Control Panel: 1-year
Description

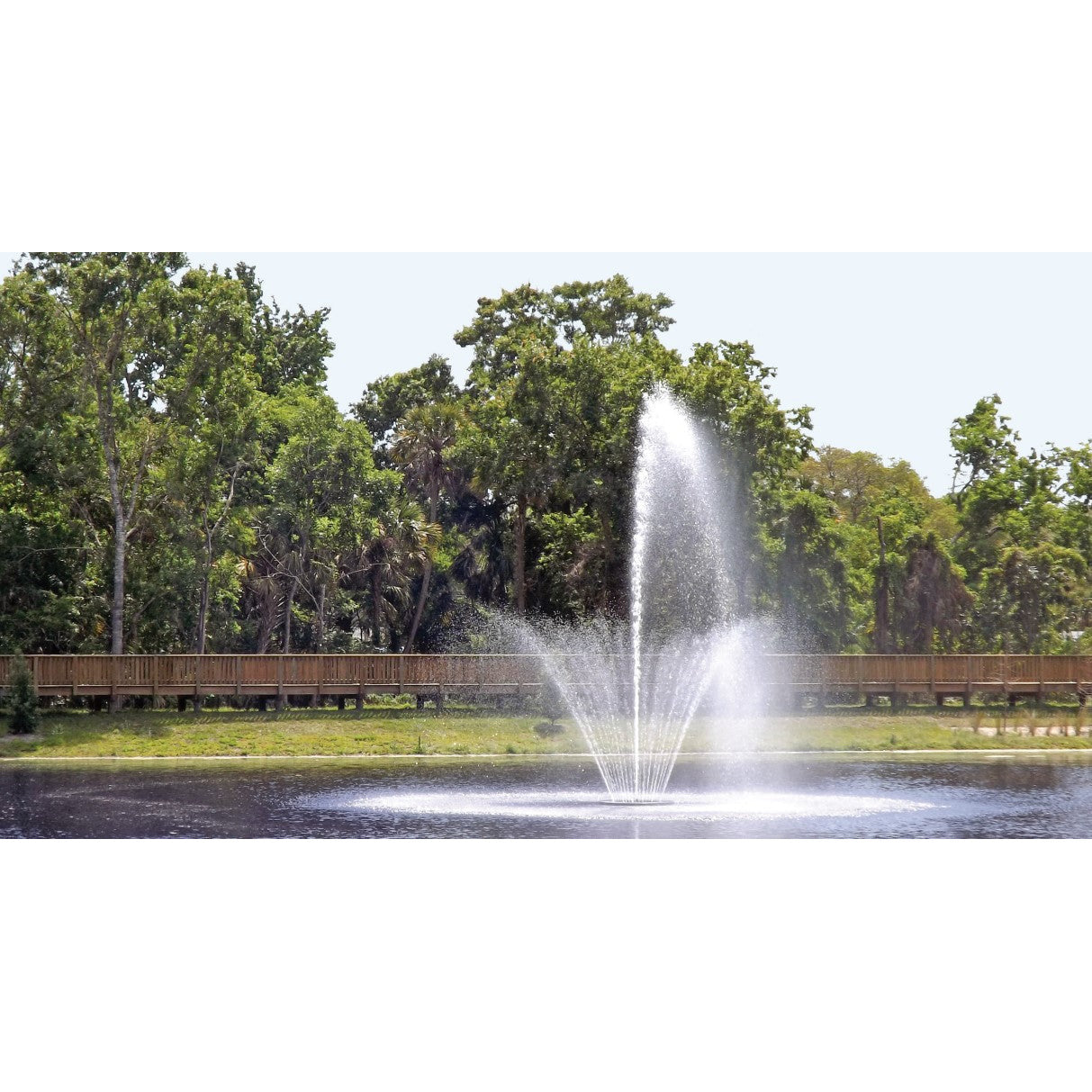

The RingJet fountain series provides the perfect balance of maximum heights and delicate mass, offering a unique and elegant water display. The center display is beautifully accented by a custom spray ring, creating a graceful outward arch of water in a tulip-like pattern.
All Vertex RingJet floating fountains are equipped with a submersible, heavy-duty turbine pump and UL listed control panel, ensuring reliable and consistent operation. Constructed with fully waterproof components made of high-quality corrosion-resistant materials, these fountains are built to provide years of dependable and high-performance use.
Specs
Nozzles
- Precision machined brass/bronze or stainless steel nozzles.
Pumps/Motors
- High performance turbine pump/motor assembly
- Stainless steel construction
- Water cooled: no oils, seals or o-rings to replace
- 4 year warranty
Flotation
- Rotocast polypropylene with UV inhibitors for long life
- Individual leveling compartments for exact adjustments
- 4 year warranty
Control Panel
- UL listed per National Electrical Code
- Weatherproof steel enclosures
Submersible Light Fixtures
- 43Watt, 120V clear, stainless steel LED light fixtures with tempered lens and neoprene gaskets, mounting brackets and fastenings of stainless steel
- Energy efficient LED, 140 lumens
- Stainless steel housing
- 2 year warranty
Cables
(NOT INCLUDED IN LISTED PRICE)
- Call for price on cable
- STW-A rated
- 4 year warranty
Minimum Water Depth
| Motor HP | Minimum Depth |
| 2 | 3' |
| 3 | 3' |
| 5 | 4' |
| 7.5 | 5' |
| 10 | 6' |
| 15 | 7' |
Electrical Specs
| Motor HP | Total Wattage | Amp Draw | Available Phase |
| 2 | 86W | 1 | 1,3 |
| 3 | 86W | 1 | 1,3 |
| 5 | 129W | 1.5 | 1,3 |
| 7.5 | 172W | 2 | 1,3 |
| 10 | 172W | 2 | 1,3 |
| 15 | 215W | 2.5 | 1,3 |
Documentation

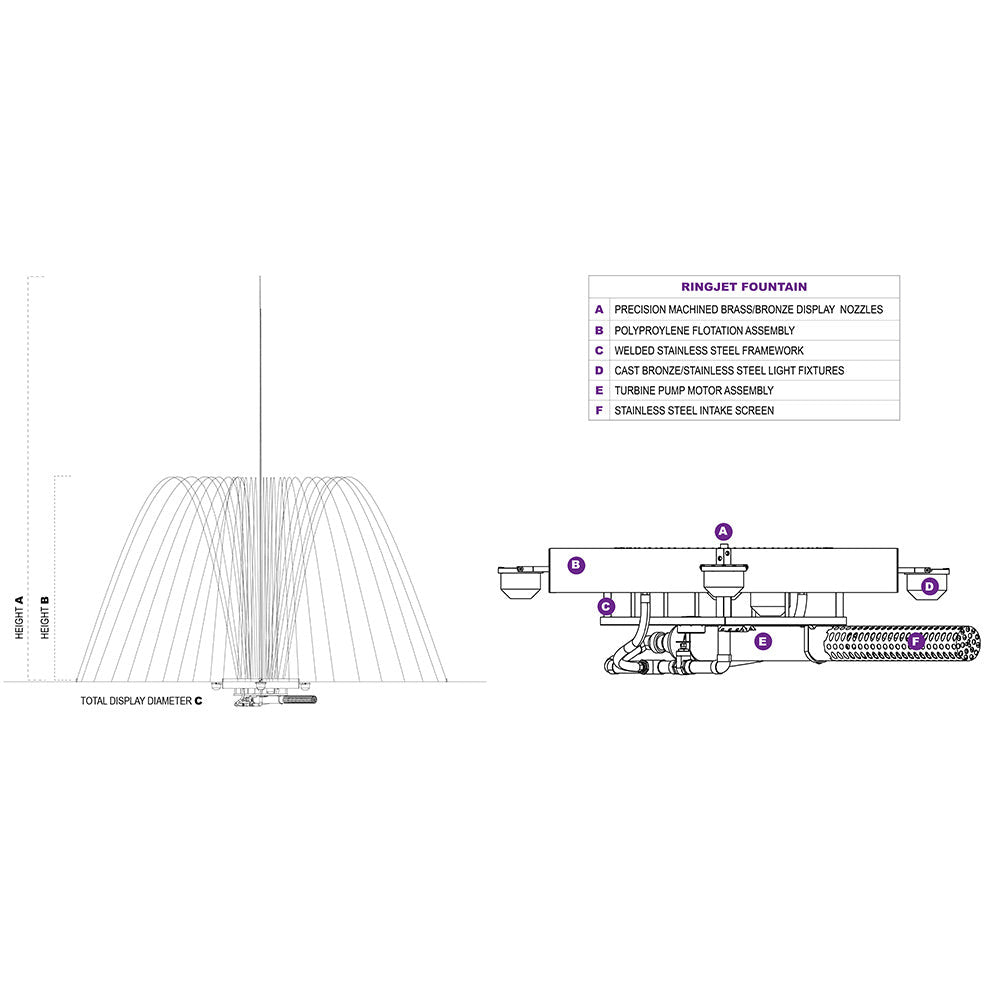

Vertex RingJet System Specifications
Power Cable
Please see below for maximum cable lengths. All cable is sold in 25' increments.
Single Phase: 230V 60HZ
| HP | 14/4 | 12/4 | 10/4 | 8/4 | 6/4 | 4/4 | 2/4 |
| 2 | 150' | 250' | 400' | ||||
| 3 | 125' | 200' | 300' | 400' | |||
| 5 | 175' | 275' | 400' | ||||
| 7.5 | 200' | 300' | 400' | ||||
| 10 | 150' | 250' | 400' | ||||
| 15 | 200' | 300' | 400' |
3-Phase: 230V 60HZ
| HP | 14/4 | 12/4 | 10/4 | 8/4 | 6/4 | 4/4 | 2/4 |
| 2 | 275' | 400' | |||||
| 3 | 200' | 400' | |||||
| 5 | 225' | 325' | 400' | ||||
| 7.5 | 225' | 350' | 400' | ||||
| 10 | 275' | 400' | |||||
| 15 | 300' | 400' | |||||
| 20 | 200' | 350' | 400' | ||||
| 25 | 275' | 400' | |||||
| 30 | 300' |
3-Phase: 208V 60HZ
| HP | 14/4 | 12/4 | 10/4 | 8/4 | 6/4 | 4/4 | 2/4 |
| 2 | 225' | 400' | |||||
| 3 | 175' | 300' | 400' | ||||
| 5 | 175' | 300' | 400' | ||||
| 7.5 | 200' | 300' | 400' | ||||
| 10 | 225' | 350' | 400' | ||||
| 15 | 250' | 400' | |||||
| 20 | 300' | 400' | |||||
| 25 | 375' | ||||||
| 30 | 300' |
3-Phase: 460V 60HZ
| HP | 14/4 | 12/4 | 10/4 | 8/4 |
| 2 | 400' | |||
| 3 | 400' | |||
| 5 | 400' | |||
| 7.5 | 400' | |||
| 10 | 300' | 400' | ||
| 15 | 400' | |||
| 20 | 400' | |||
| 25 | 400' | |||
| 30 | 400' |
