Description

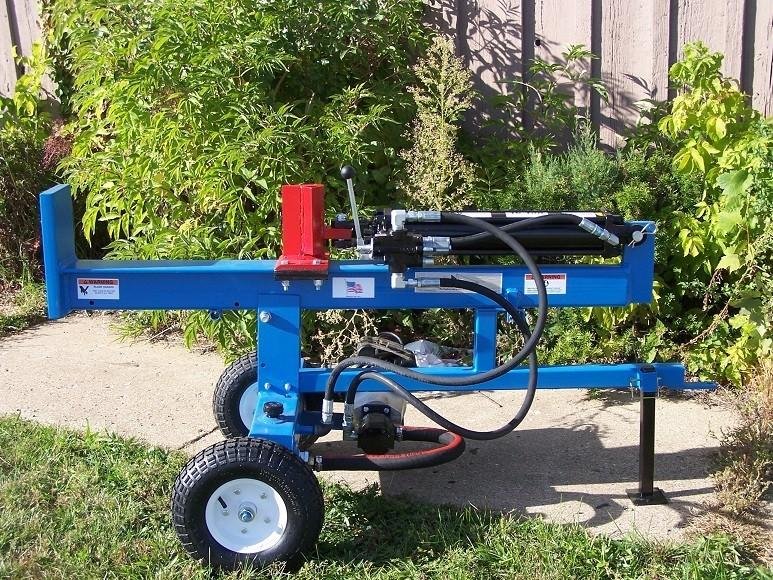

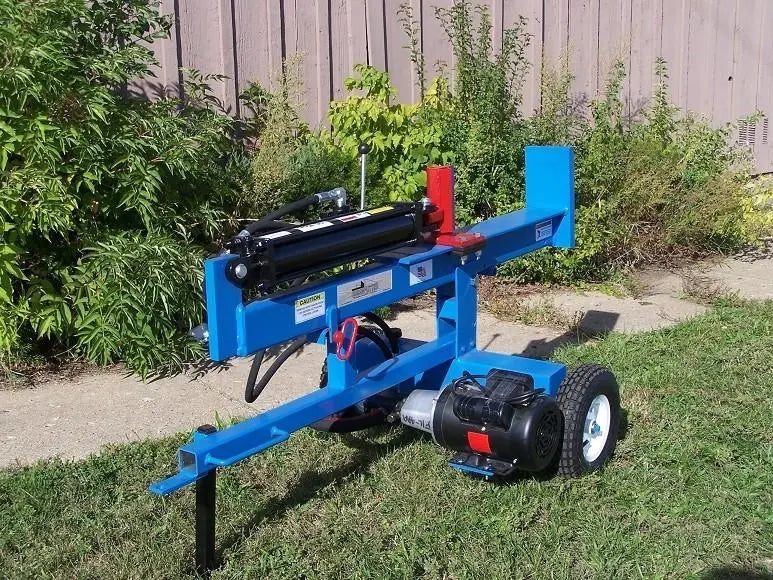

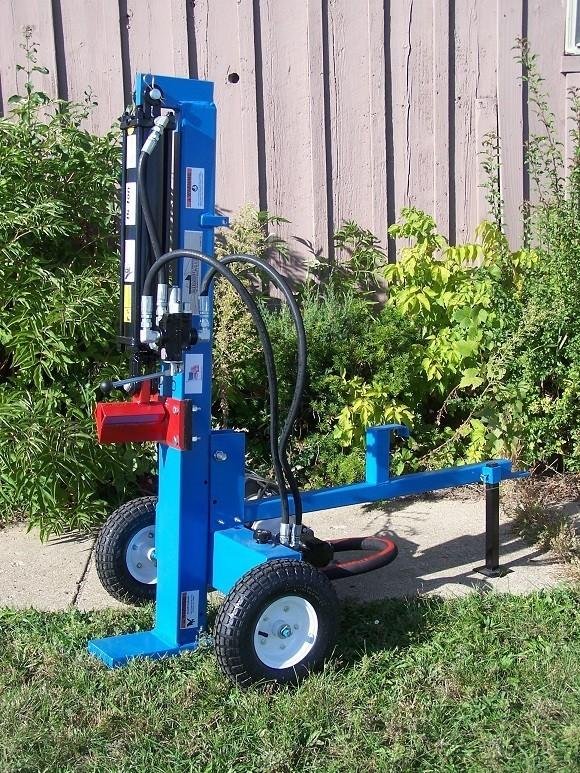

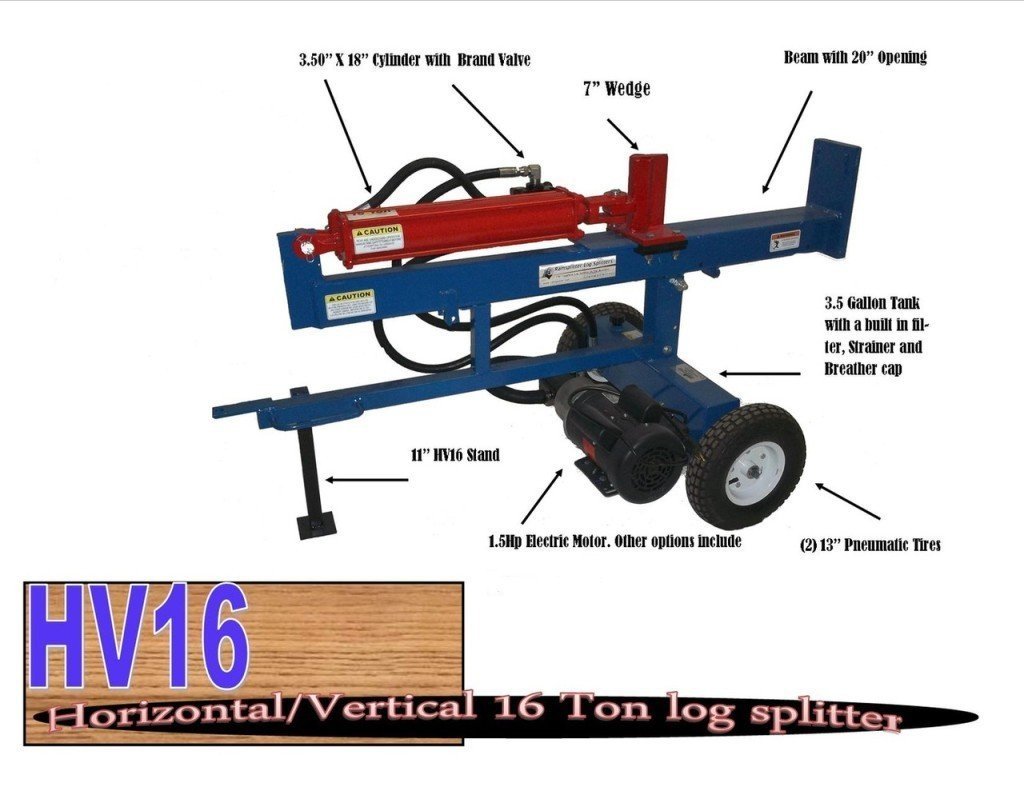

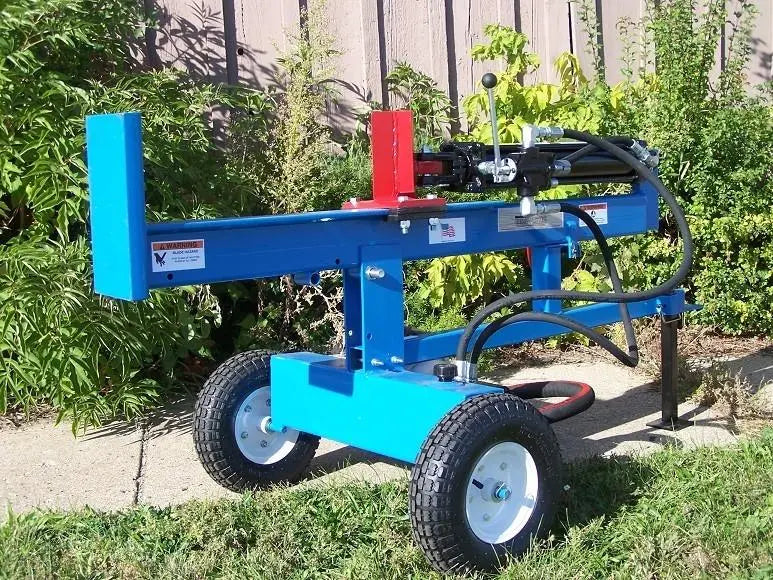

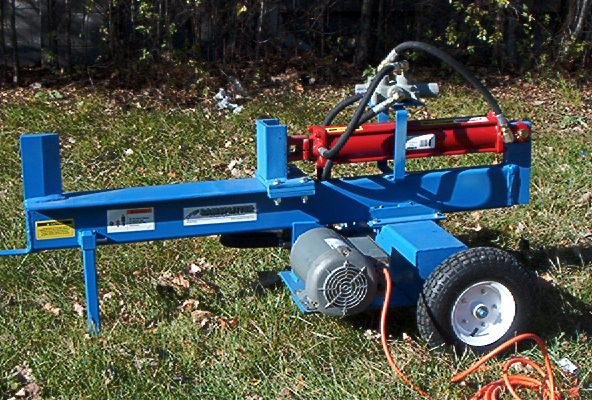

x16 ton HV16-4 Electric Log Splitter
16 ton HV16-4 Ram Splitter comes with a 1.5 HP motor which gives you the equivalent HP to a 5 HP Gasoline motor with out having to pull on a cord to start it. With the high torque of this electric motor, you are not giving up any power. The nice thing about this unit is you can spit in your garge or indoors if wanted to! No harmful fumes.
See the video below of one of our customers who bought from us years ago to see this electric wood splitter in action. Even though the video is a horizontal configuration, the horizontal vertical works just as good! Electric log splitters comes complete with one year warranty on all parts. This log splitter does not come with a road towable package but it is available as an option.
This log splitter is customizable with the following options:
- 4 Way Wedge – Split logs into 4 pieces. 4 way wedge just slips over existing single wedge. (Can slide on and off quickly, choose 4 way wedge option to see picture) 4 way wedge will reduce opening size by 2″.
- Log Cradles – HV units catch falling wood saving you from bending over and picking up split wood off the ground and splitting again. Just imagine the amount of extra times you could save from bending over picking up firewood to split again from each cord of wood? Cradles are bolted on the beam and can be remove at anytime.
See options above the big green “add to cart” button for pricing and pictures. When you select them it will built and price your splitter as you go! Questions? Feel free to contact us at 888-706-2434 for no hassle no pressure help and advice. We are here to help.
Please note these log splitters are delivered via freight truck. You will be responsible to take the crate off the back of the truck unless you select lift gate delivery as an option. Some assembly is required.
Detailed Specifications
Beam Structure:
2″ wide x 5″ tall – 5″ Top Plate Tubular Design
Splitting Wedge:
6″ High
Operating Position:
Horizontial / Vertical
Force / Tonnage:
16 Ton (32,000 lbs)
Cylinder:
3.5″ x 18″
Cycle Time:
11-13 Seconds (Approx)
Log Opening:
20 Inches
Wheels & Tires:
13″ High Pneumatic tires
Road Towable:
No
Motor:
Electric 1.5HP
Recommended Amps:
20 Amp Breaker
Operating Size:
32″ wide, 70″ long, 48″ in vertical
Hydraulic System:
4 Gallon Tank + Cylinder, and Hoses
Safety Control Valve:
Detent, Auto Return
2 Stage Pump:
11 Gallons Per Minute
Operation Weight:
325 LBS
Warranty:
1 Year
Made in USA:
Yes!
4 Way Wedge:
Optional
Tow Package:
Optional
Log Cradles:
Optional
