Description

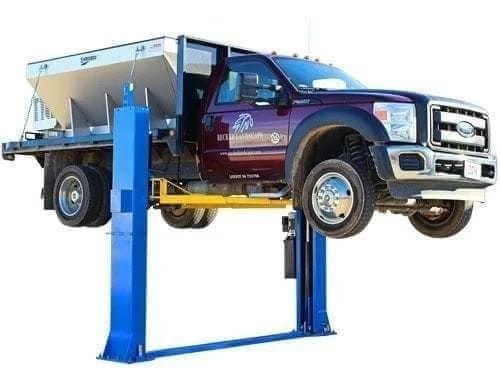

xThe Atlas BP12000X is a commercial grade heavy duty 12,000 pound capacity 2 post base plate above ground lift. This above ground lift has over sized columns, symmetric three stage arms, and single point lock release.
This lift is perfect for those commercial garages that want to lift heavier vehicles but have limited ceiling height. The Atlas BP12000X can be installed at two different width settings to accommodate wider trucks or trailers and to facilitate “driving between” the lift columns.
Features & Benefits
- 12,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Baseplate, Open-Top Style Lift
- Overall Height: 122 1/2″ (10′ 2 1/2″)
- Adjustable Width
- 3-Stage Symmetric Arms
- Automatic Arm Restraints
- Single-Point Lock Release
- Rubber Guards on Carriages
- Dual Hydraulic Chain-Over Cylinders
- Powder Coat Finish
- Free 12 piece Truck Adapter Set
- Mounting Hardware Included
- 5 yr Structural – 2 yr Hydraulic Warranty
Atlas ATTD-BP12000X Specifications
| Capacity | 12,000 lb. |
| Overall Height | 122 1/2″ (10′ 2 1/2″) |
| Overall Floor Width | 149 3/8″ (12′ 5 3/8″) or 154 1/2″ (12′ 10 1/2″) |
| Outside Column to Outside Column | 135 7/8″ (11′ 3 7/8″) or 141 1/4″ (11′ 9 1/4″) |
| Maximum Lift Height (Without Adapters) | 77 1/2″ |
| Maximum Lift Height (With Adapters) | 88 1/2″ |
| Minimum Arm Height | 4″ |
| Inside Column | 118 1/8″ (9′ 10 1/8″) or 123 1/2″ (10′ 3 1/2″) |
| Drive Thru | 103 5/8″ (8′ 7 5/8″) or 109″ (9′ 1″) |
| Column Size | 8 3/4″ x 14″ |
| Column Thickness of Steel | 6mm |
| Base Of Lift | 18 1/2″ x 21 1/2″ |
| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Adapter Heights | 4 Each 2″, 3″, 6″ |
| Arm Hole/Adapter Peg Size | 1.5″ |
