OKAI E-Kargo EB70 Cargo Utility eBike 440 lbs Weight Capacity

OKAI E-Kargo Cargo Utility Electric Bike | EB70

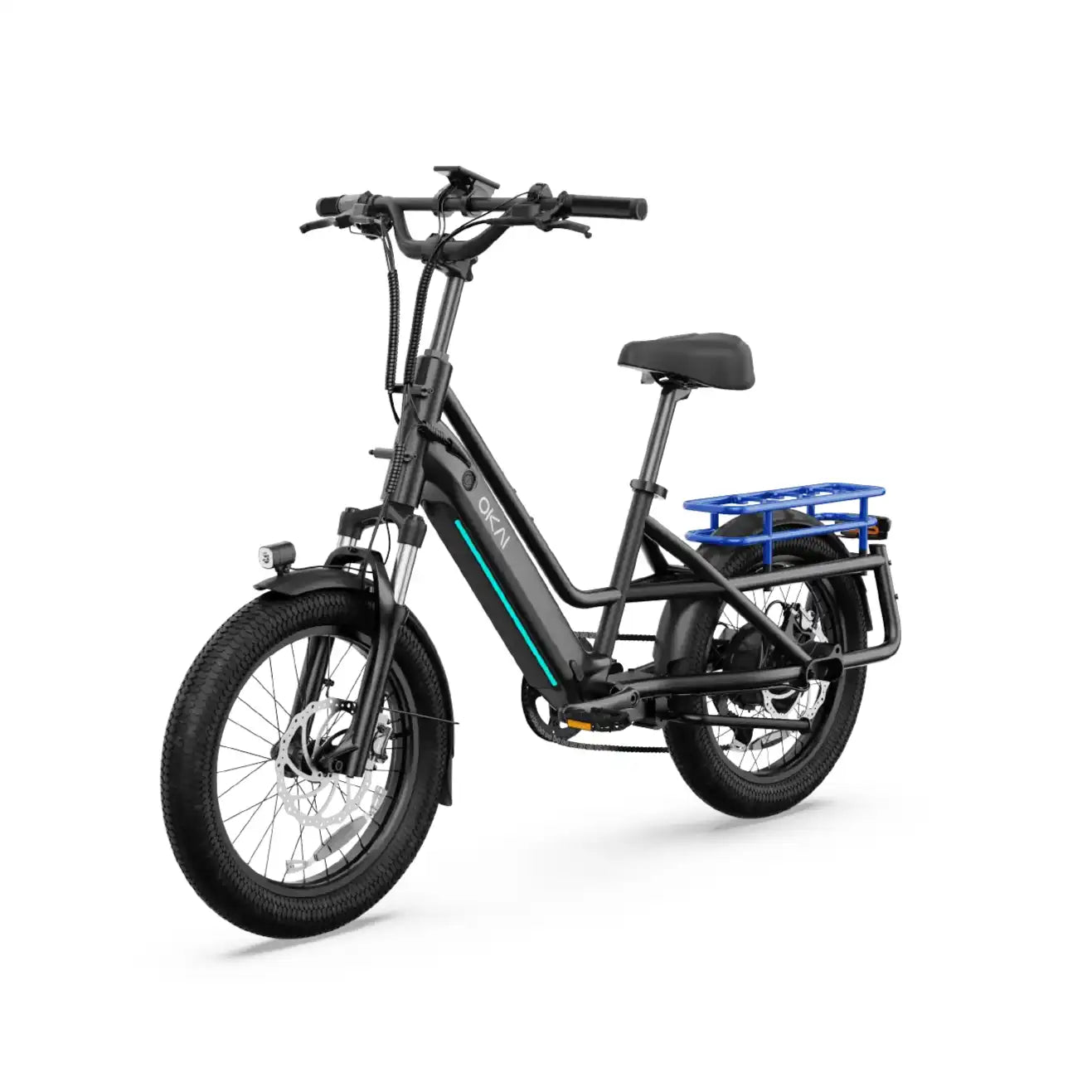

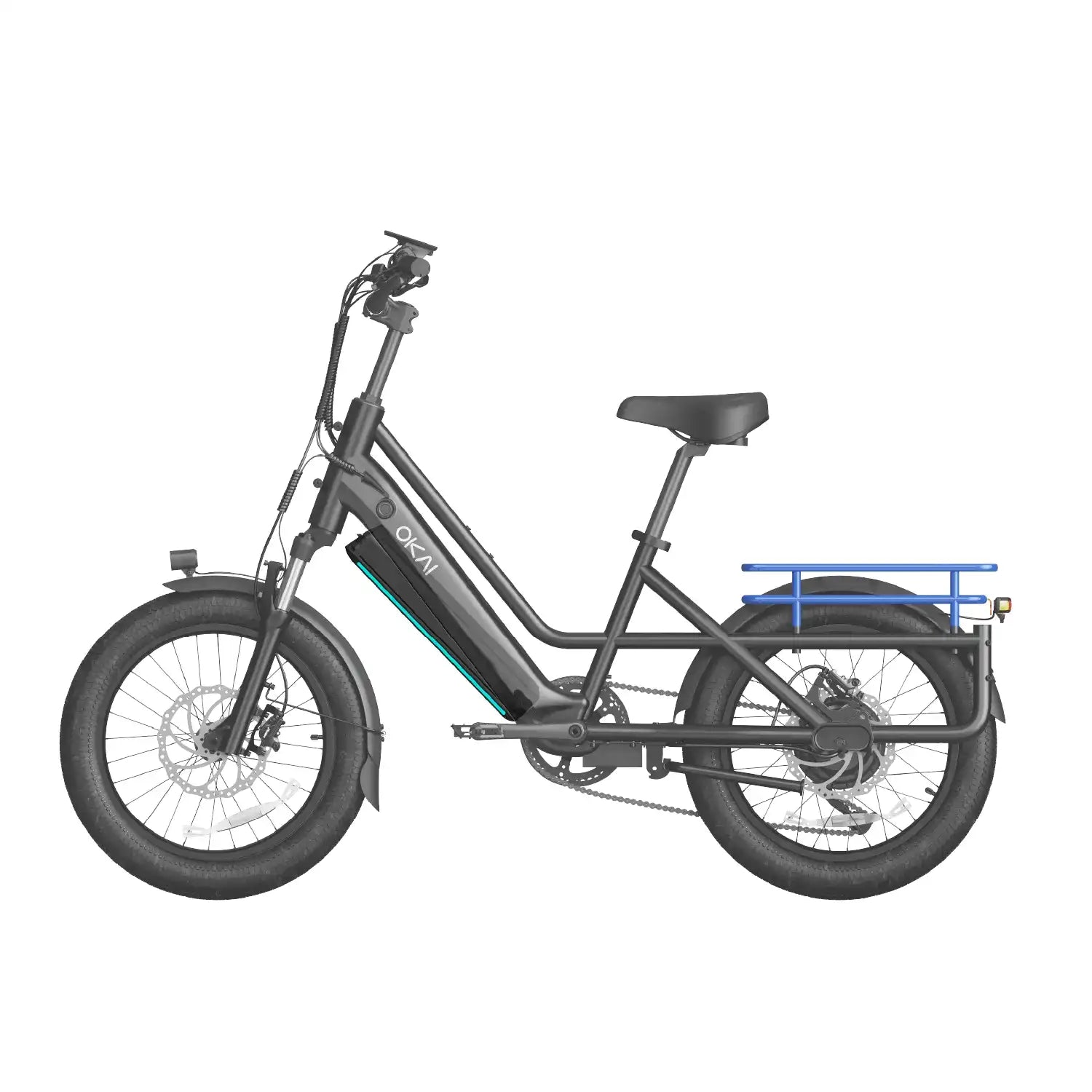

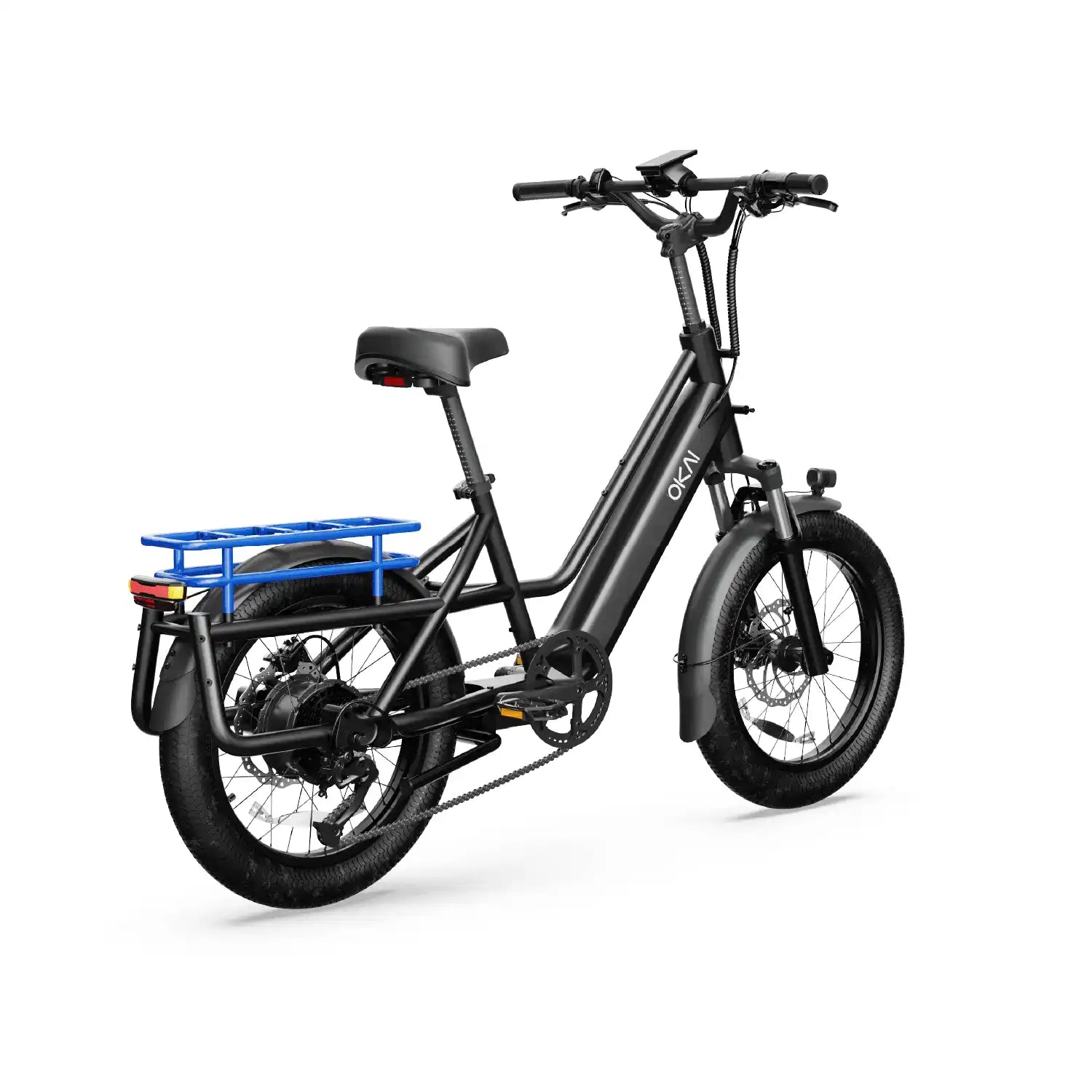

Carry more, drive less. The OKAI E-Kargo EB70 is a utility cargo e-bike engineered to replace car trips with a 440 lbs total payload capacity, a 500W motor (850W peak), and a 689.76Wh LG-cell battery that delivers up to 50 miles of range. Whether you are hauling groceries, tools, delivery packages, or kids, this bike handles the load without compromising stability or ride quality.

The aircraft-grade 6061 aluminum frame keeps the structure rigid under heavy loads while Tektro hydraulic disc brakes provide the stopping power that loaded cargo demands. 20x3 inch fat tires maintain traction and stability even with a full rear rack, and a 60mm suspension fork with lockout smooths out potholes without bobbing under pedaling effort. OKAI app integration tracks ride stats, battery health, and custom settings from your phone, and the customizable LED light bar doubles as both a visibility feature and a real-time battery indicator. UL 2849 safety certified.

Features

• 440 lbs Payload Capacity - Aircraft-grade 6061 aluminum frame supports rider, cargo, and accessories without flexing or compromising handling.
• 850W Peak Motor - 500W nominal rear hub motor with 50Nm torque accelerates smoothly even under heavy cargo loads.
• 689.76Wh LG Battery - Fully integrated, swappable battery with LG 21700 cells delivers up to 50 miles on pedal assist or 25 miles throttle-only.
• Hydraulic Disc Brakes - Tektro HD-E3520 hydraulic calipers deliver powerful, fade-resistant stopping for loaded riding.

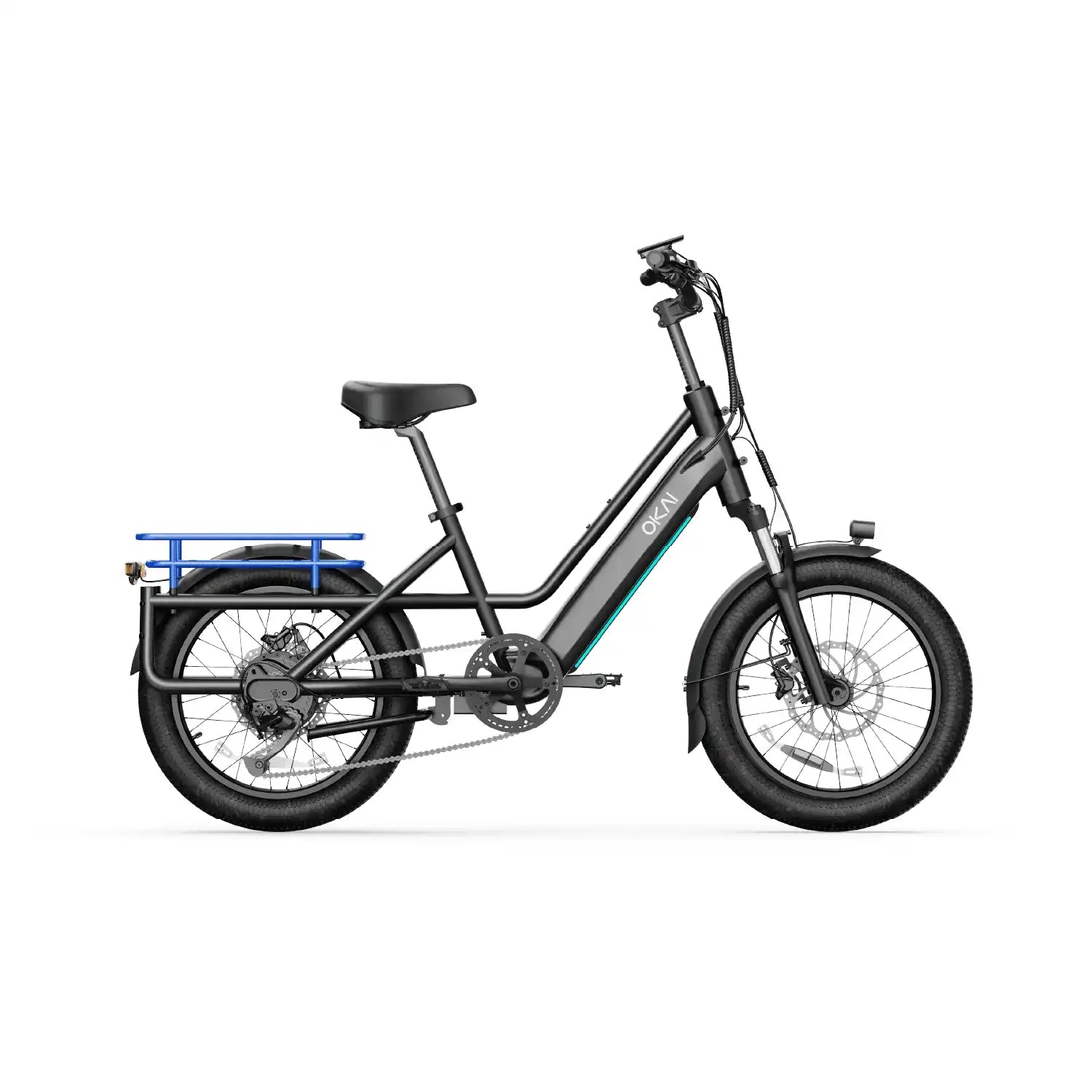

• Heavy-Duty Rear Cargo Rack - Built for substantial loads — groceries, delivery bags, panniers, and gear.

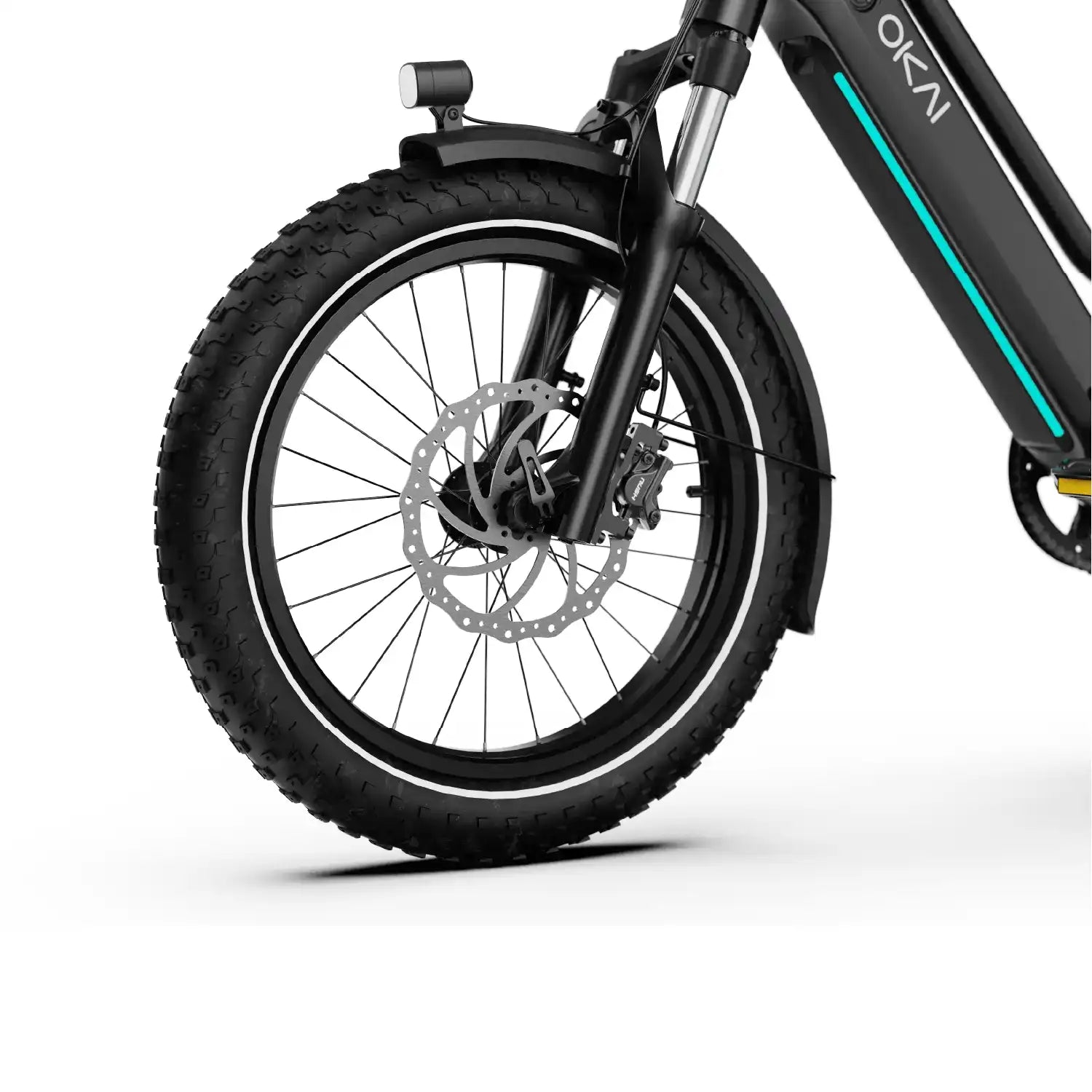

• 20x3" Fat Tires - Wide profile maintains stability and traction under load on pavement, gravel, and uneven surfaces.
• Suspension Fork with Lockout - 60mm travel absorbs road imperfections. Lock it out for efficient pedaling on smooth surfaces.
• OKAI App Integration - Track ride stats, monitor battery, and customize settings from your phone.

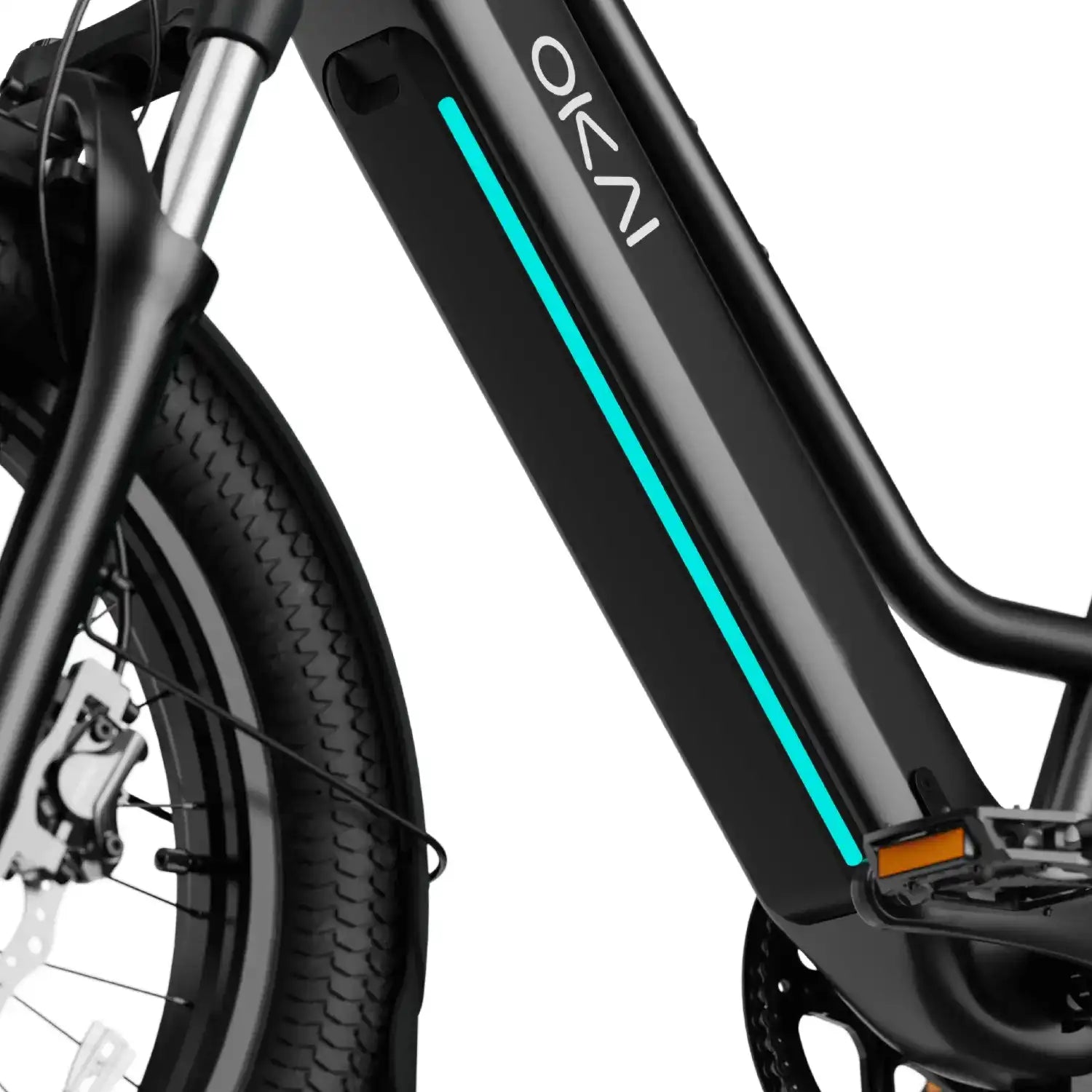

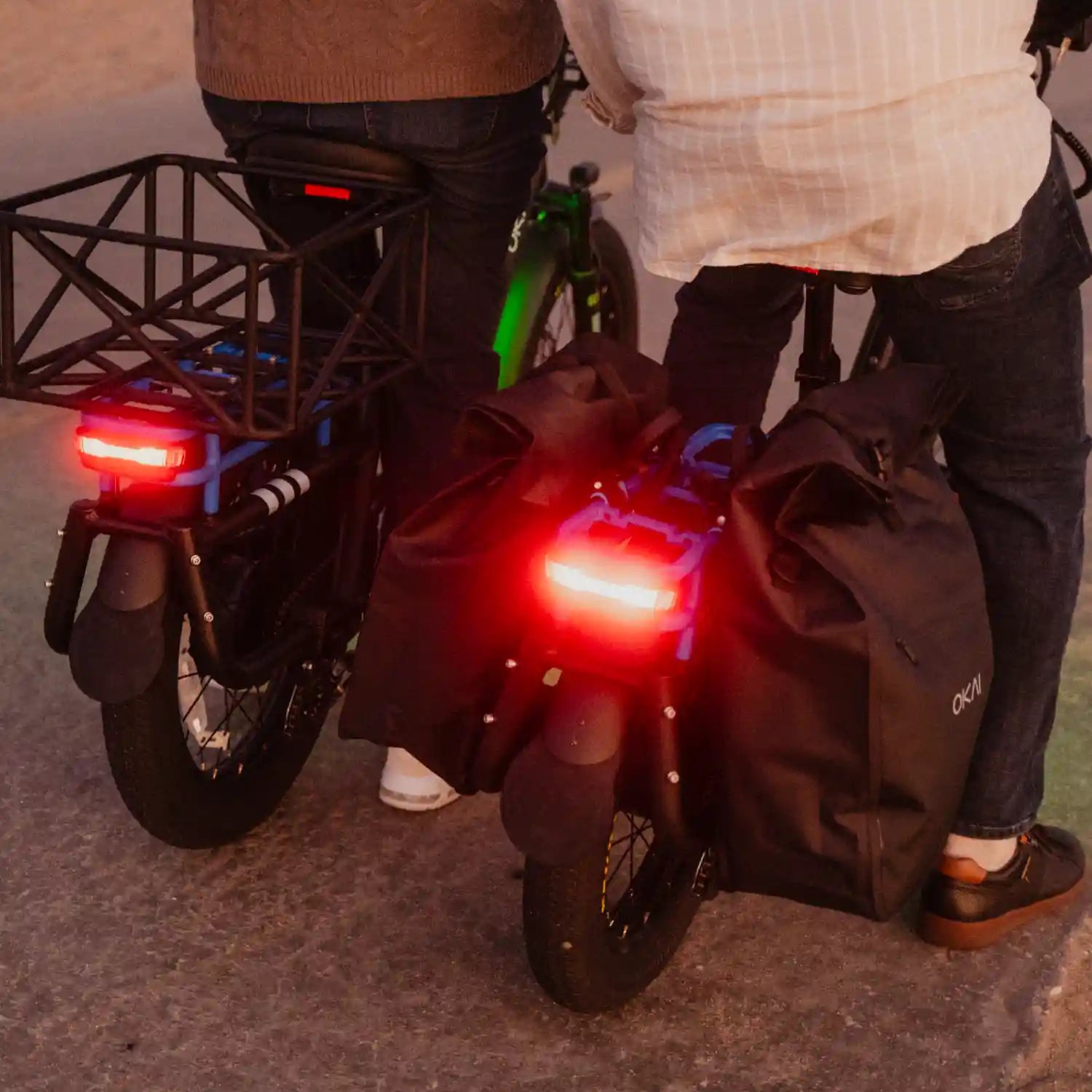

• Customizable LED Light Bar - Integrated frame lighting provides visibility and real-time battery status indication.
• UL 2849 Safety Certified - Meets the rigorous UL safety standard for e-bikes covering electrical and fire safety.

Specifications

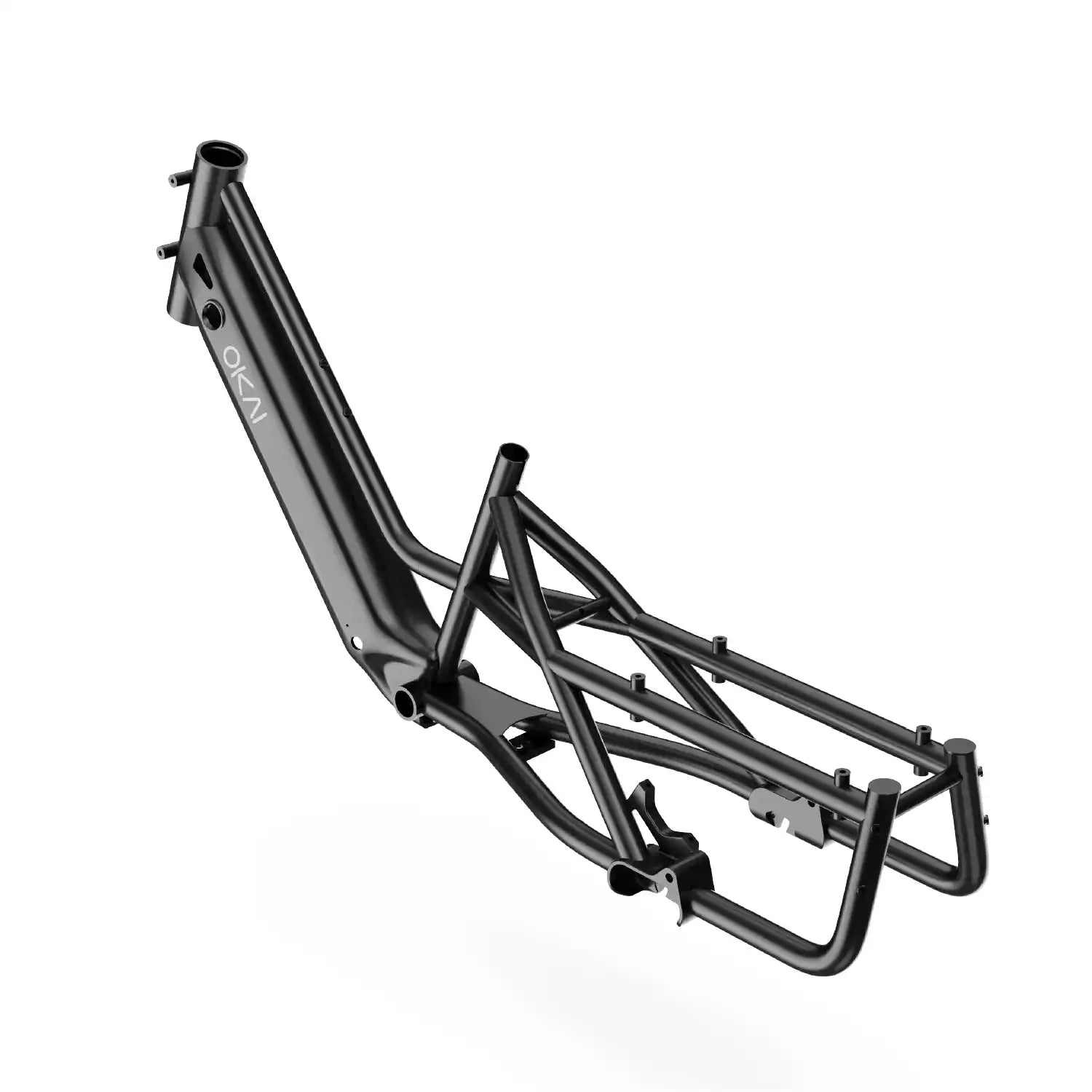

• Frame: 6061 Aluminum Alloy, Downtube Battery, Internal Cable Routing, Smooth Welds
• Fork: 60mm Travel, with Lockout
• Motor: 500W Nominal, 850W Peak, 50Nm Torque, 48V
• Battery: 47.9V, 14.4Ah, 689.76Wh, Fully Integrated, Swappable, LG 21700 Battery Cells
• Top Speed: Class 2
• Range: Up to 50 miles

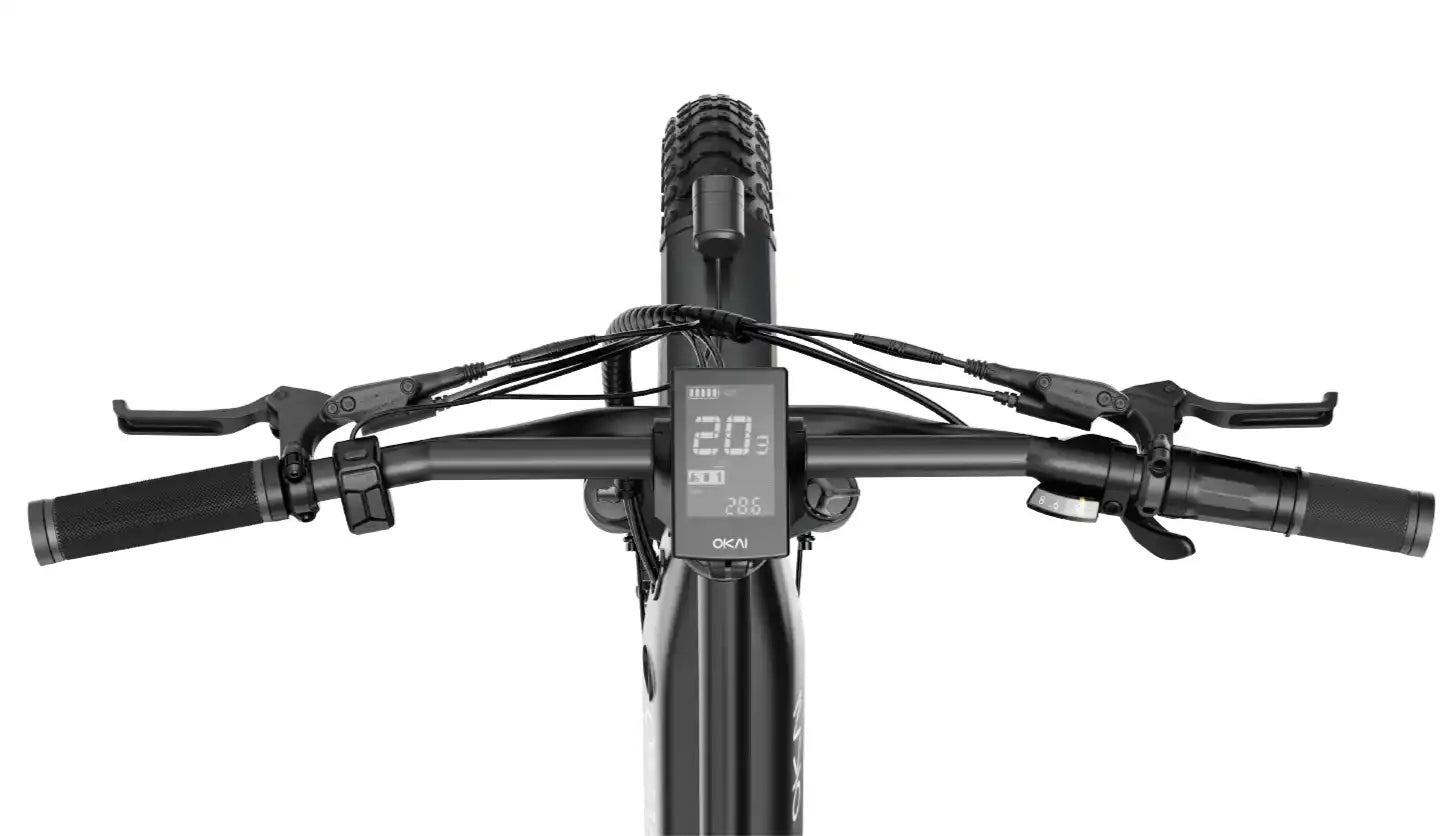

• UI/Remote: Handlebar Remote, State of Battery, LCD Display
• Rear Derailleur: Shimano ALTUS RD-M310 8-speed
• Cassette: 13-32T 8-speed
• Shift Levers: Shimano ALSM3158RC 8-speed
• Brakes: Hydraulic, Tektro HD-E3520
• Tires: 20x3.0 inch, Schrader Valve
• Pedals: Grip Tape and Reflectors
• Charger: 54.6V 2A, 100-240V, UL Certified
• Handlebars: Alloy, Comfort Backsweep and Upsweep, 700mm Width
• Grips: Ergonomic, 130mm Width
• Sensor: Cadence Sensor
• Safety Certifications: UL 2849 Safety Certified
• Payload Capacity: 440 lbs
• Total Length: 64.2 inch
• Handlebar Height: 42.3 inch
• Wheelbase: 43.5 inch
• Crank Length: 6.69 inch
• Seat-Tube Length: 15.75 inch
• Chain-Stay Length: 17.9 inch
• Downtube Length: 22.8 inch
• Head-Tube Length: 8.07 inch
• Handlebar Width: 27.6 inch
• Min Seat to Floor: 30.5 inch
• Max Seat to Floor: 39 inch

Download OKAI E-Kargo EB70 Manual (PDF)
