OKAI Ranger EB50 Electric Fat Tires Mountain Bike - Where Power Meets Endurance

OKAI Ranger Fat Tire Electric Mountain Bike | EB50

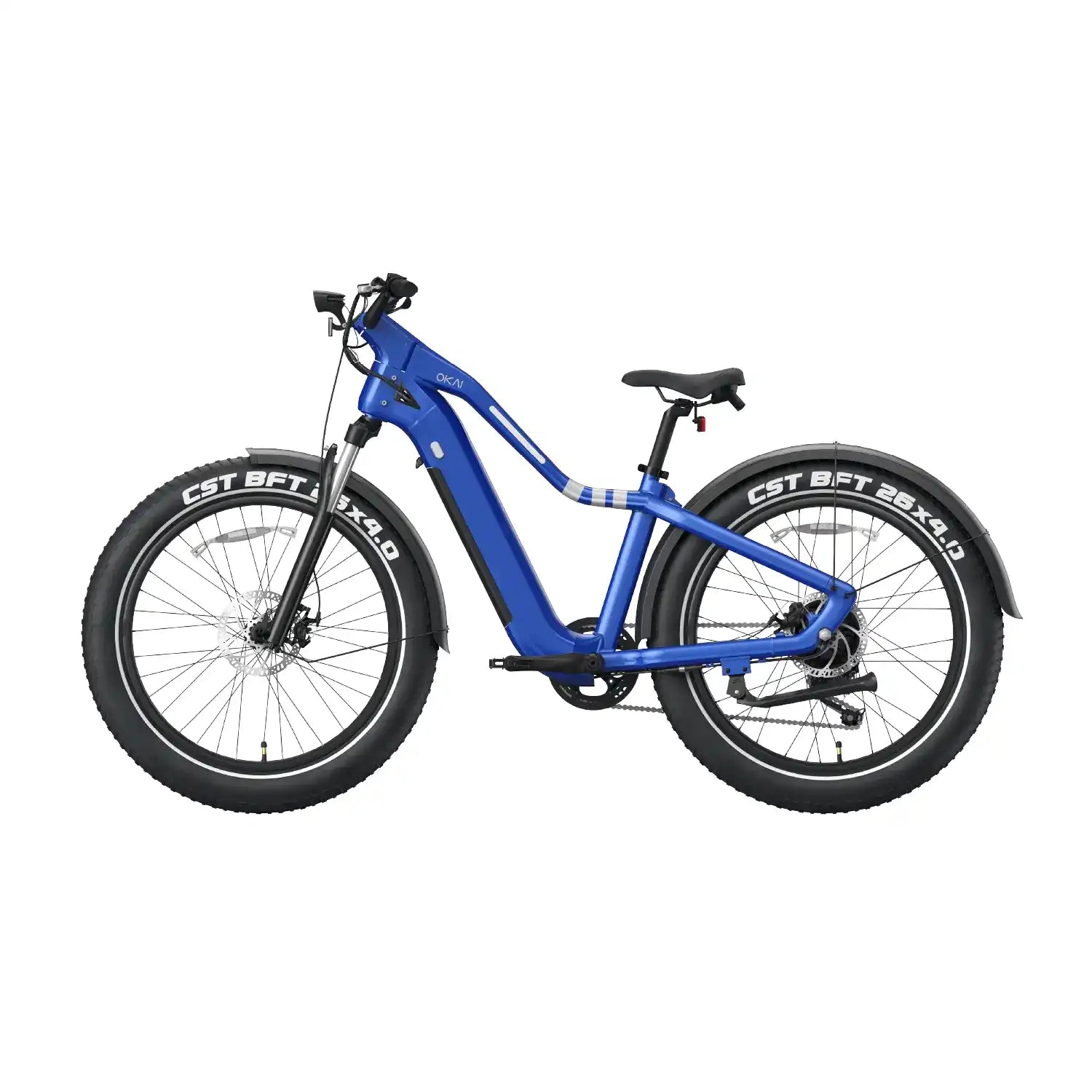

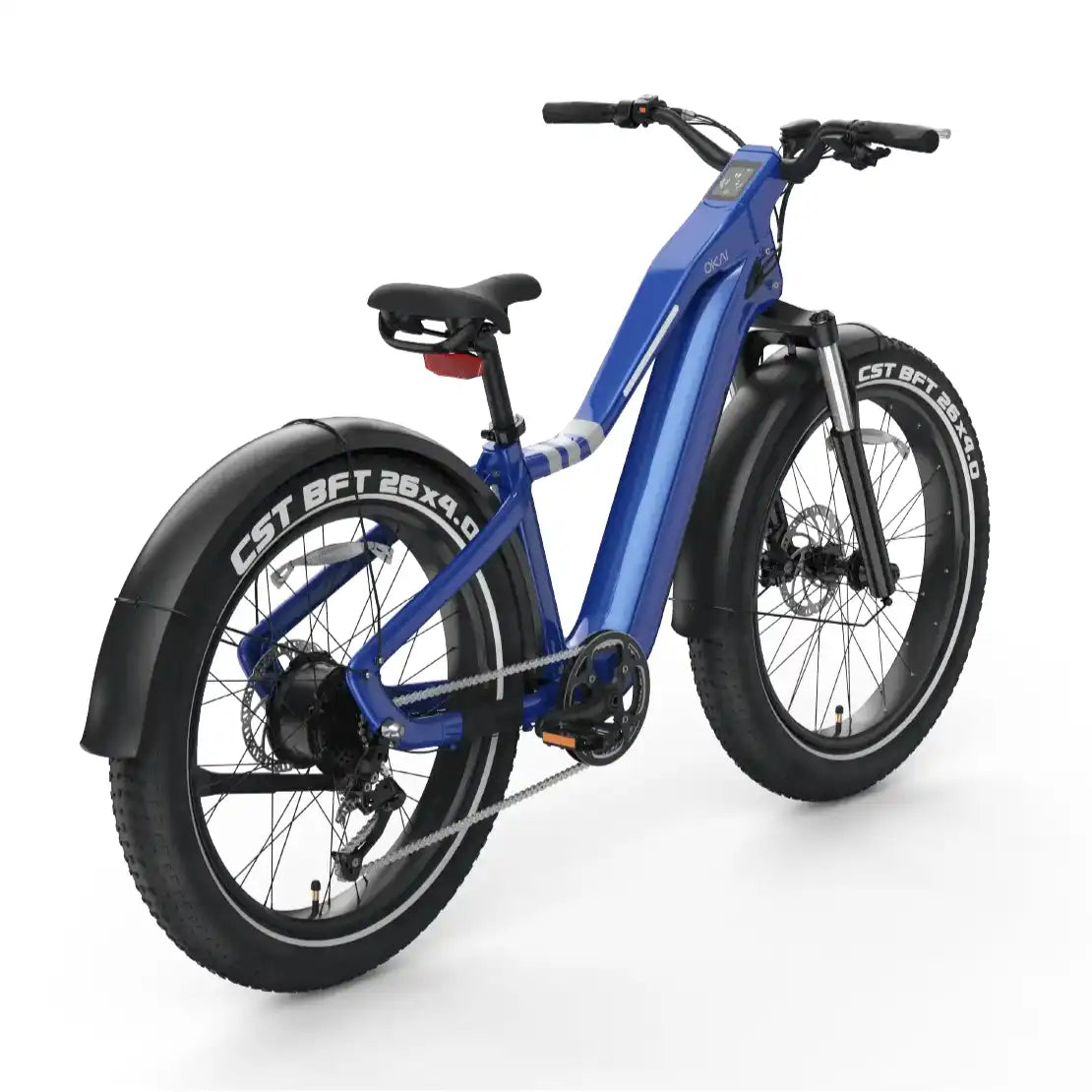

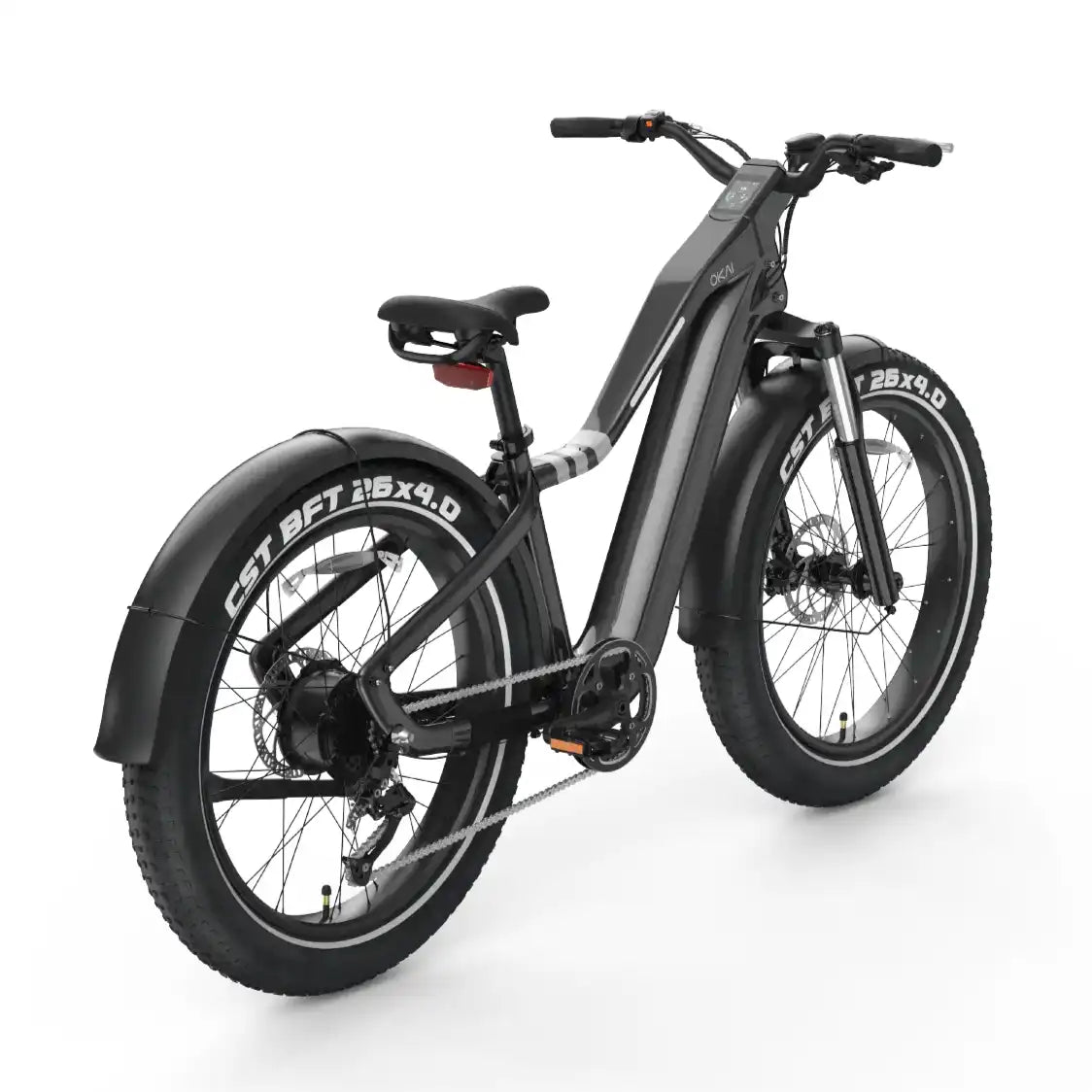

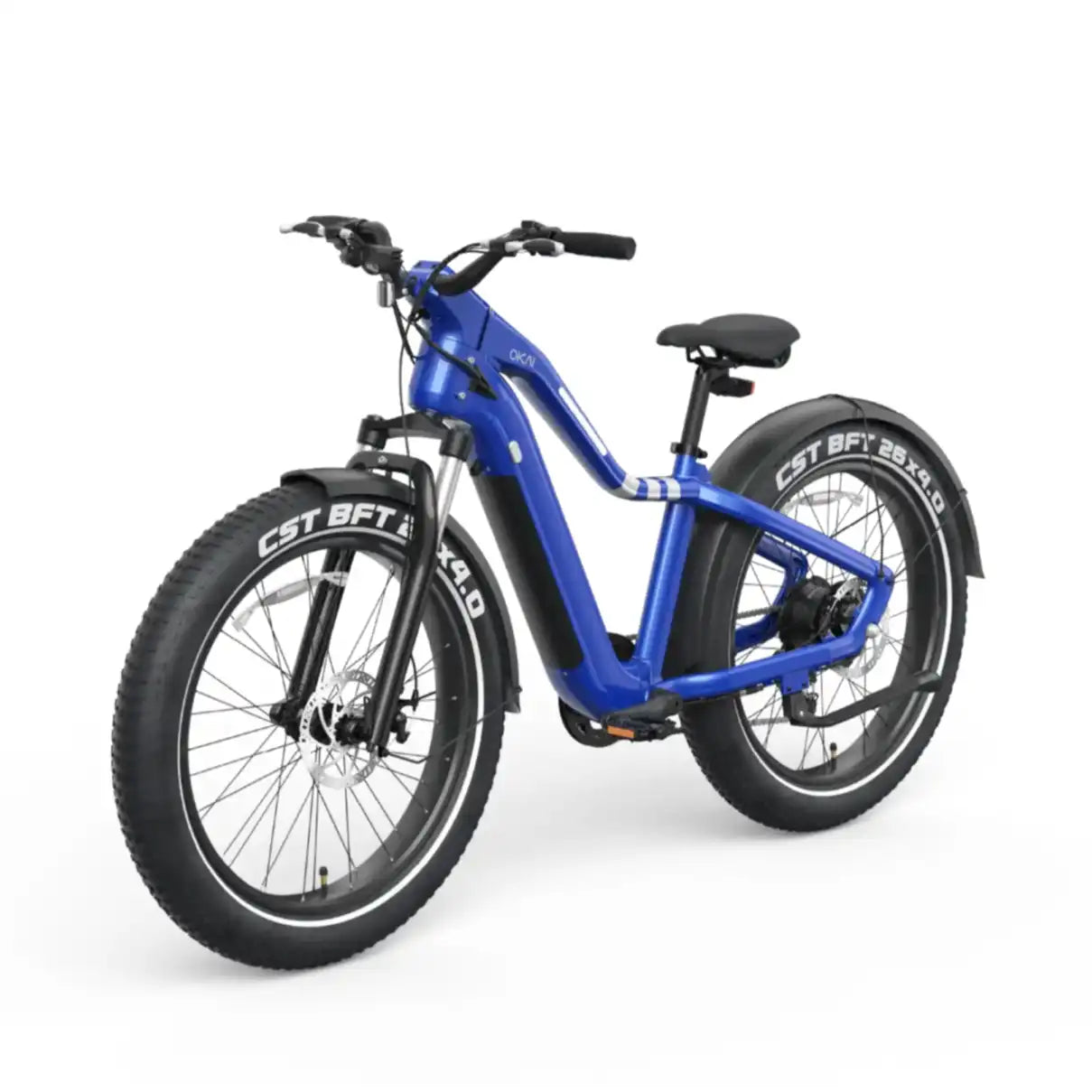

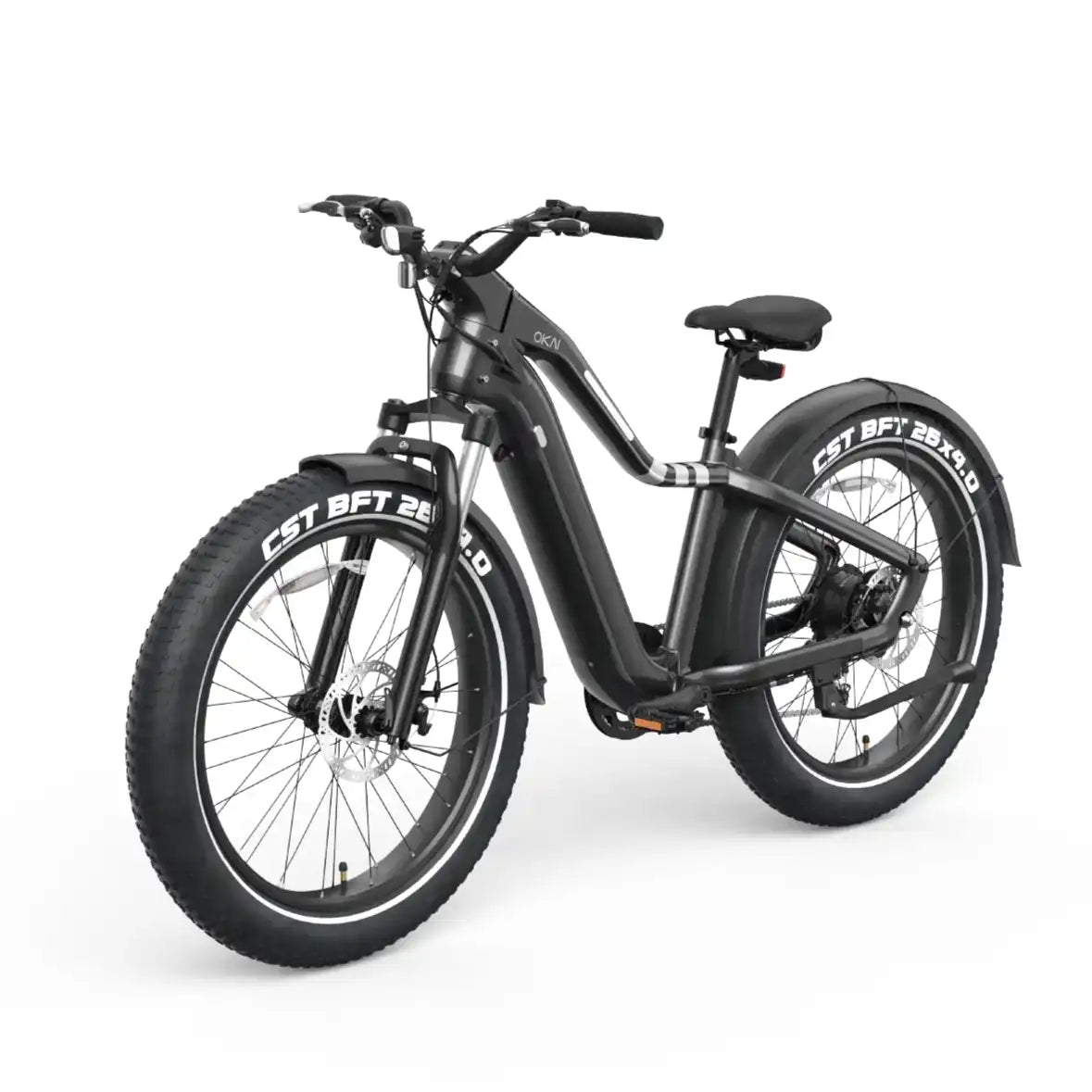

Go where pavement ends and the trail begins. The OKAI Ranger EB50 pairs a 750W BAFANG rear hub motor (1000W peak, 85Nm torque) with 26x4 inch fat tires and RST hydraulic suspension to handle dirt, gravel, sand, and snow with the same confidence it cruises city streets. A 705.6Wh Samsung-cell battery pushes range to 45 miles, and speeds top out at 28 mph — enough power to flatten hills and extend your riding radius well beyond the neighborhood.

The full-color integrated LCD touchscreen puts speed, battery, range, and assist level at your fingertips without fumbling with a phone mount. NFC key technology locks and unlocks the bike with a tap, while customizable ambience lighting turns heads after dark. The 6061 aerospace-grade aluminum frame keeps weight manageable without compromising the 330 lbs payload capacity, and the swappable battery design means you can charge off the bike or carry a spare for all-day adventures.

Features

• 1000W Peak BAFANG Motor - 750W nominal rear hub motor delivers 85Nm of torque for steep climbs, deep sand, and aggressive trail riding at speeds up to 28 mph.
• 705.6Wh Samsung Battery - Fully integrated, swappable battery with Samsung cells provides up to 45 miles of range. Charge on or off the bike.

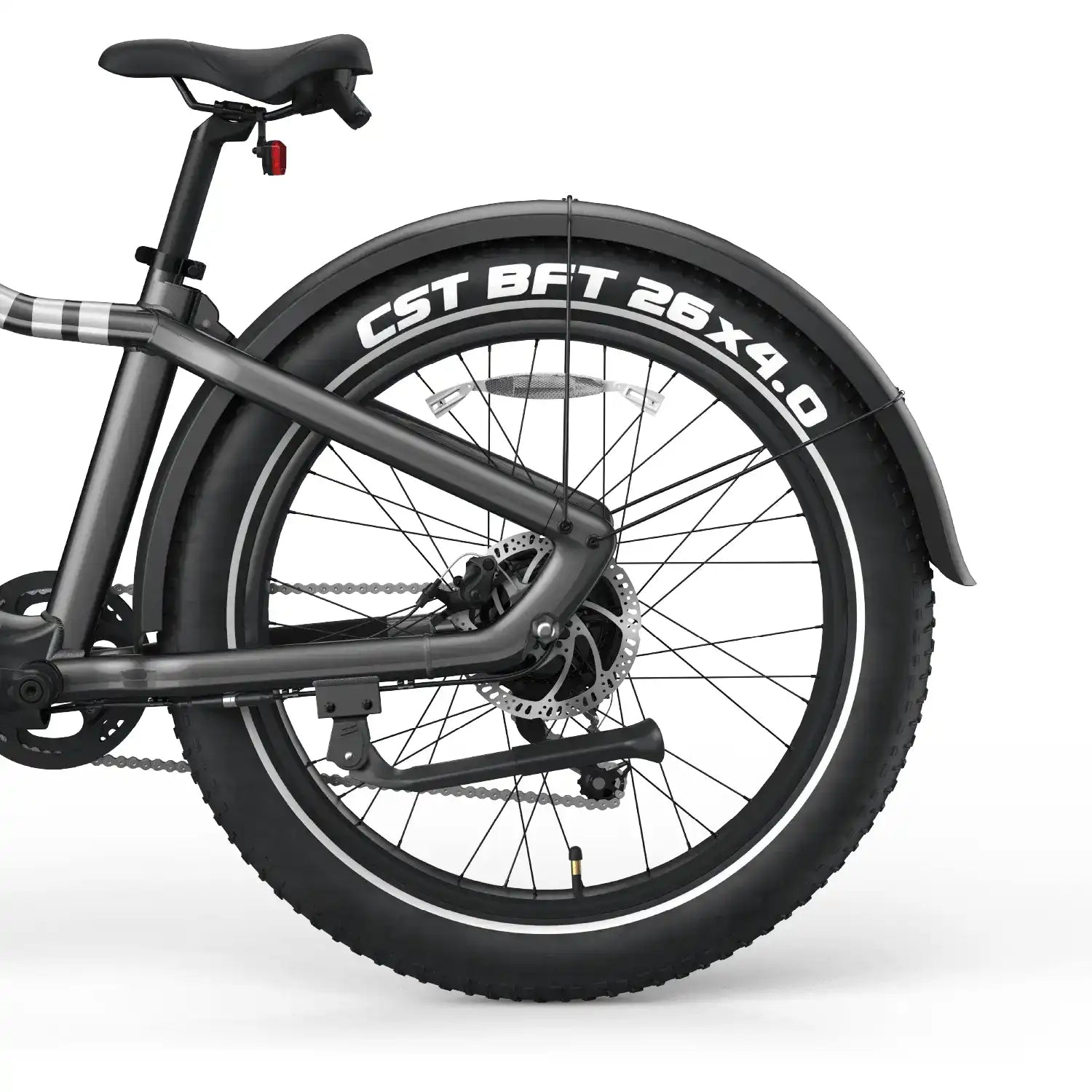

• 26x4" Fat Tires - Wide-profile tires grip loose terrain, absorb impacts, and maintain traction on sand, snow, mud, and wet pavement.

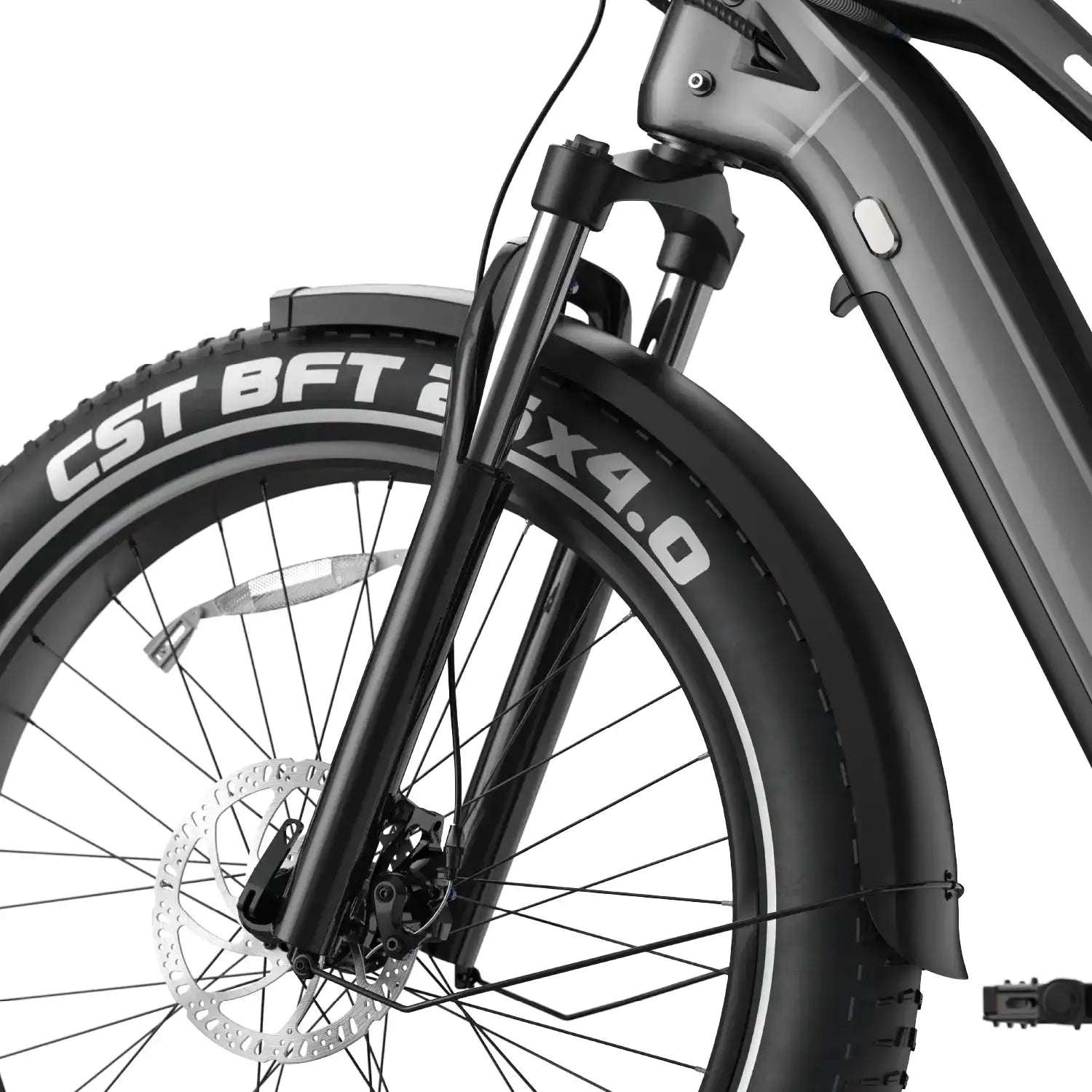

• RST Hydraulic Suspension Fork - 80mm adjustable travel with lockout absorbs trail impacts and locks out for efficient road riding.

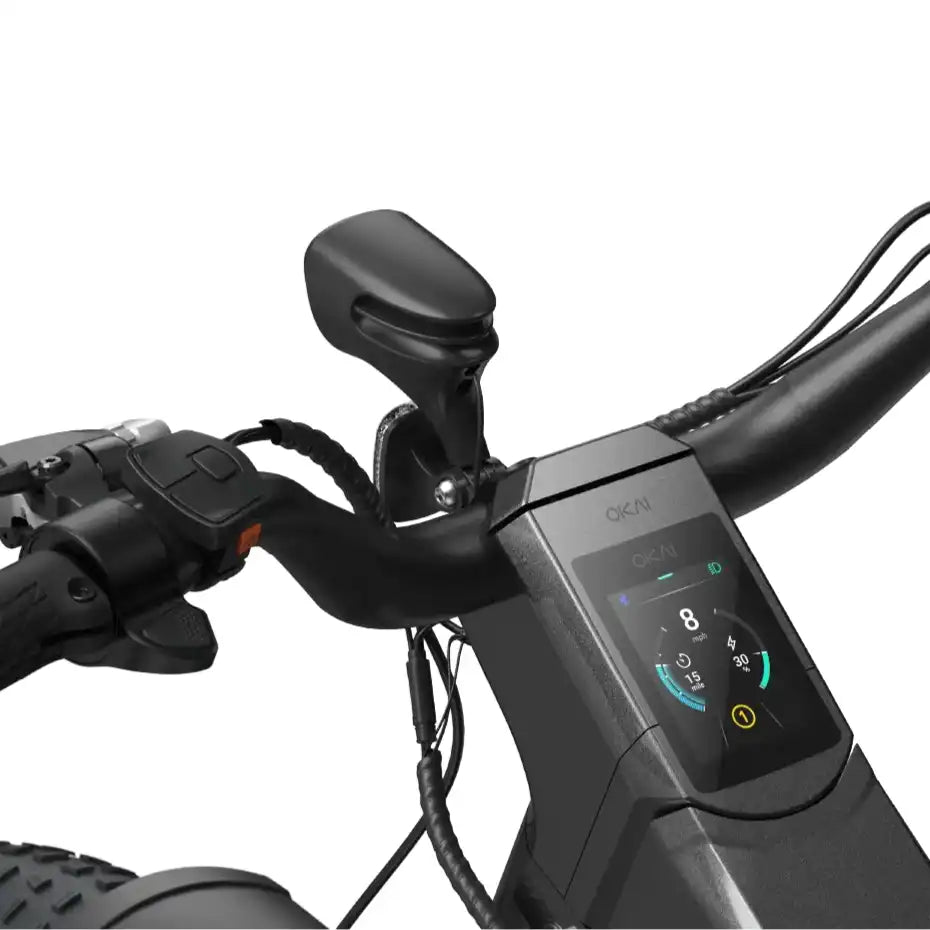

• Integrated LCD Touchscreen - Full-color embedded display shows real-time speed, battery, range, assist level, and trip data. No phone mount needed.
• NFC Key System - Tap to lock and unlock your bike. No combination codes or physical keys to lose.

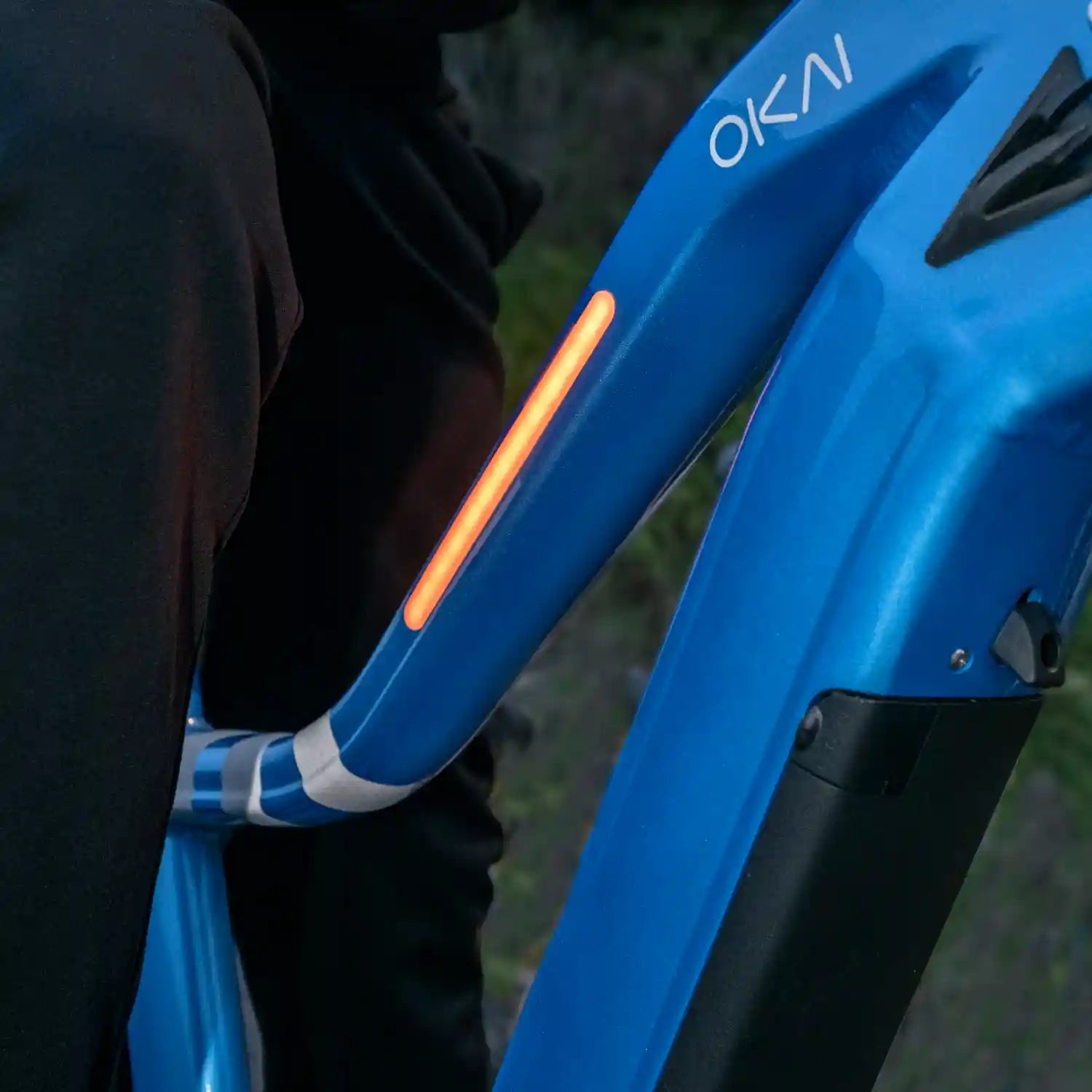

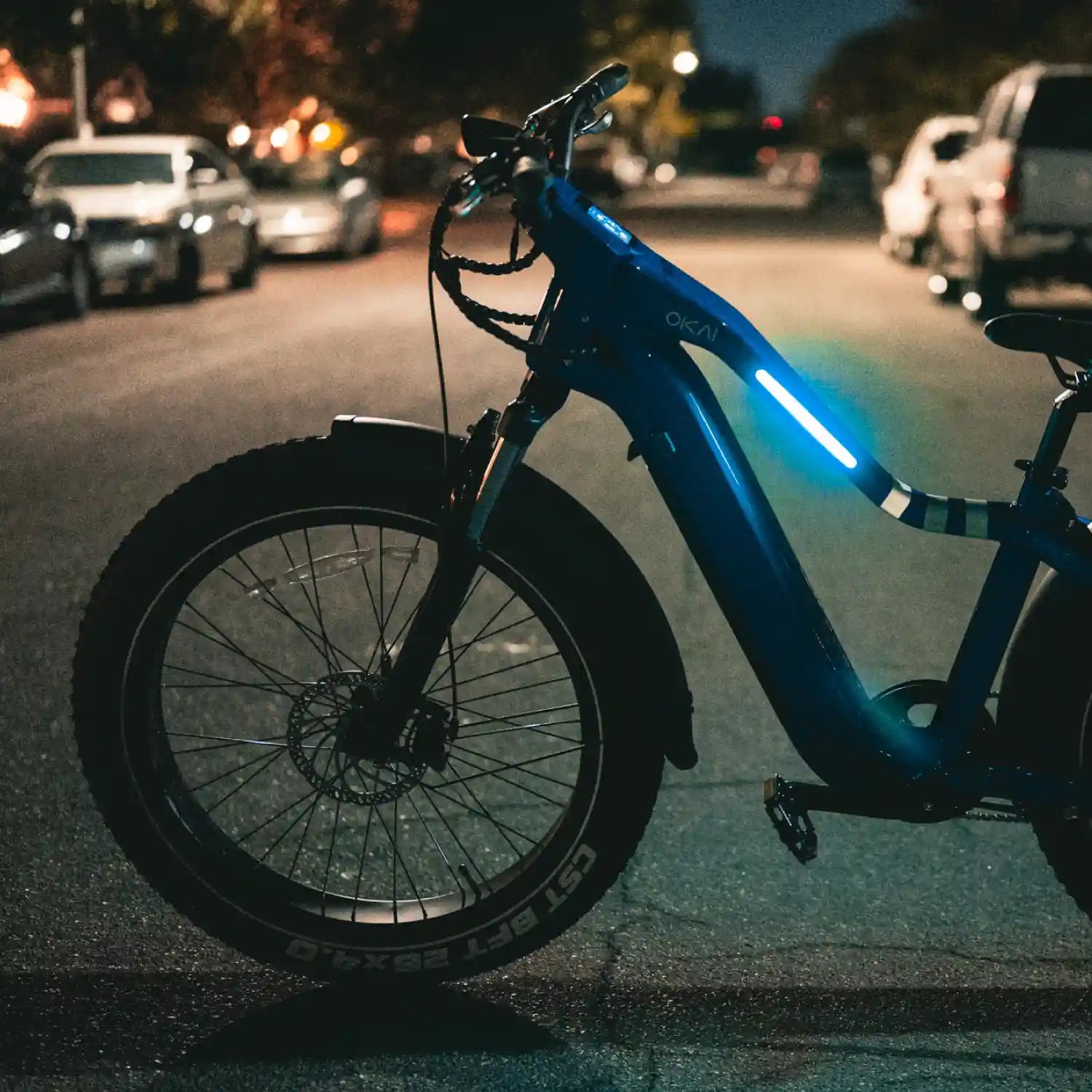

• Customizable Ambience Lighting - Integrated frame lighting enhances visibility and personalization for night rides.
• Shimano 8-Speed Drivetrain - ALTUS derailleur with 12-32T cassette provides a wide gear range for technical terrain.
• 330 lbs Payload Capacity - Aerospace-grade 6061 aluminum frame supports heavier riders and loaded cargo configurations.
• Tektro Mechanical Disc Brakes - MD-M300 calipers with EL555 levers deliver consistent stopping power in wet and dry conditions.

Specifications

• Frame: 6061 Aluminum Alloy, Downtube Battery, Internal Cable Routing, Smooth Welds
• Fork: RST, Adjustable, 80mm Travel, with Lockout
• Motor: BAFANG, 750W Nominal, 1000W Peak, 85Nm Torque, 48V
• Battery: 705.6Wh, Fully Integrated, Swappable, Samsung Battery Cells
• Top Speed: 28 mph
• Range: Up to 45 miles
• UI: Embedded LCD Touchscreen, Real-time Bike Info, NFC Key, Handlebar Remote
• Rear Derailleur: Shimano ALTUS ARDM310DLC 8-speed
• Cassette: Shimano CS-HG200 8S 12-32T
• Shift Levers: Shimano ALSM3158RC
• Brakes: Tektro MD-M300
• Brake Levers: Tektro EL555
• Tires: 26x4.0 inch Fat Tire, Schrader Valve
• Chain: KMC Z8.3
• Pedals: Grip Tape and Reflectors
• Charger: 54.8V 2.8A, 100-240V, UL Certified

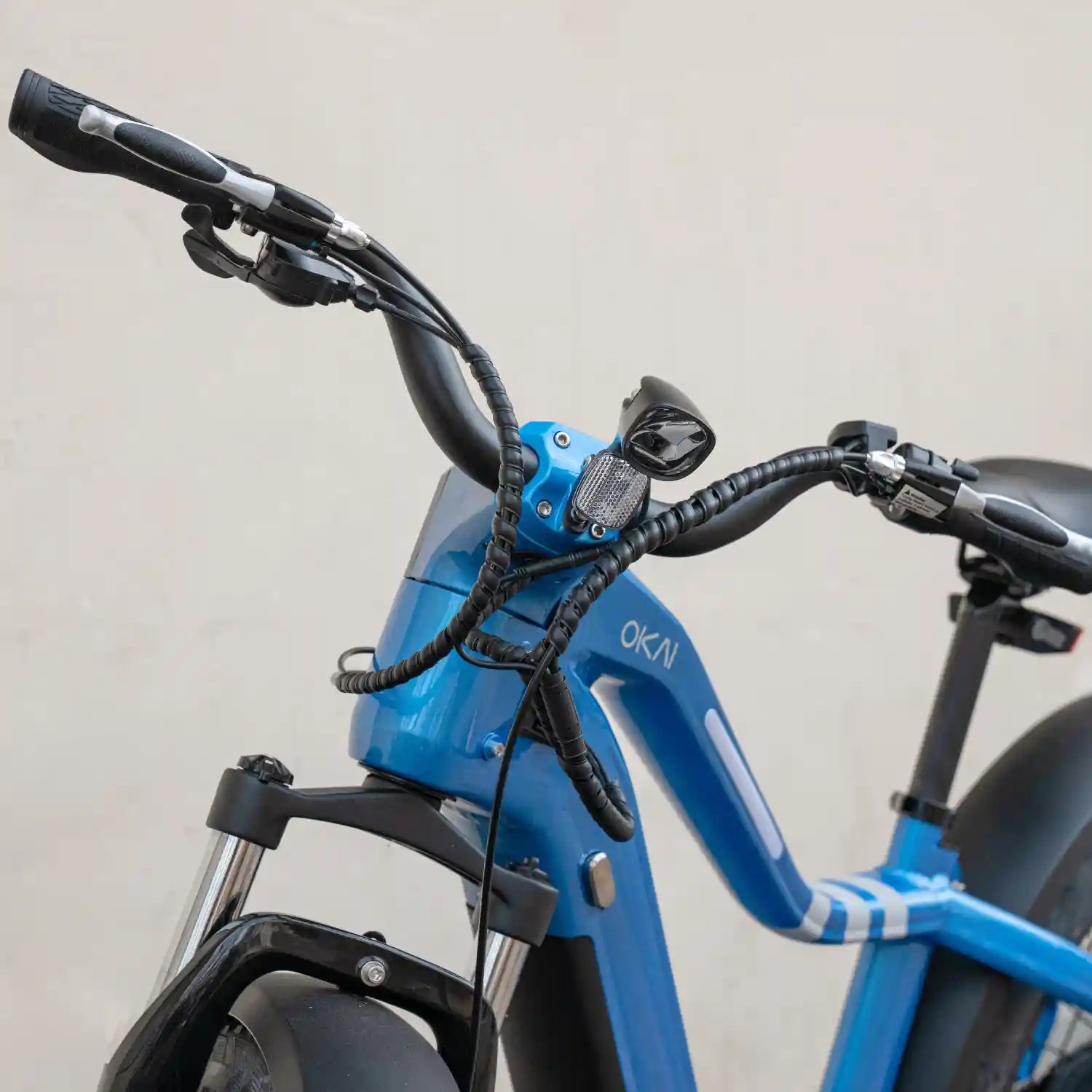

• Handlebars: Alloy, Comfort Backsweep and Upsweep, 715mm Width
• Grips: Ergonomic, 131.6mm Width
• Payload Capacity: 330 lbs
• Total Length: 75.5 inch
• Handlebar Height: 43.3 inch
• Wheelbase: 46.9 inch
• Crank Length: 6.9 inch
• Seat-Tube Length: 17.3 inch
• Chain-Stay Length: 19.1 inch
• Downtube Length: 26.4 inch
• Head-Tube Length: 4.7 inch
• Handlebar Width: 28.1 inch
• Min Seat to Floor: 31.3 inch
• Top Tube Length: 21.7 inch

Download OKAI Ranger EB50 Manual (PDF)
