Description
x
By default, the motors come with only the motor lead (18") but lengths of power cord are available as an additional option, call to inquire.

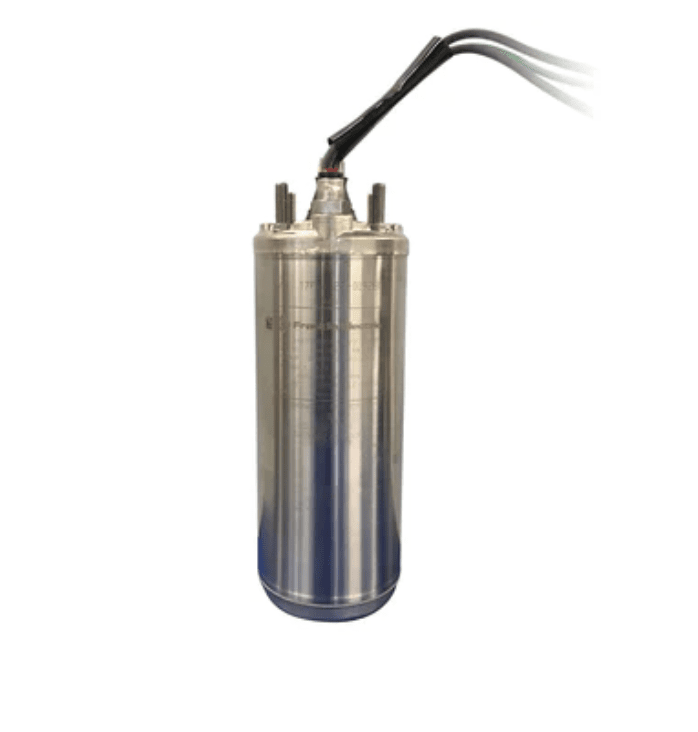

All motorized Scott Aerator products use high-quality motors. Our three-wire motors (our 2 hp and 3 hp models) require the use of control boxes (see the options box). Operation of motors without control boxes or with incorrect boxes can result in motor failure and voids the warranty. Control boxes contain starting capacitors, a starting relay, and, in some sizes, overload protectors, running capacitors, and contactors. The control box and and motor are two pieces of one assembly — since a motor is designed to operate with a control box from the same manufacturer, we can promise warranty coverage only when a control box is used with a matching manufacturer’s motor.
Three-phase, 50Hz, and larger motors are available, just ask!
Components
- Standard water well castings: 304 SS over iron
- Stator shell: 301 SS
- Shaft extension: 17-4 SS
- Fasteners: 305 SS or 302 SS
- Seal cover: acetal
- Seal: nitrile rubber lip
- Diaphragm: nitrile rubber
- Diaphragm cover: 301 SS
- Slinger: nitrile rubber
- Lead wire (or cable): XLPE ➀
- Lead potting: epoxy
- Lead jam nut: 303 SS
-
- Corrosion-resistant, all stainless steel exterior construction.
- Stainless steel splined shaft.
- Hermetically-sealed windings.
- Anti-track self-healing resin system.
- Water lubrication.
- Filter check valve.
- Kingsbury-type thrust bearing.
- Pressure equalizing diaphragm.
- Built-in lightning arrestors (all single-phase; 200 and 230 volt three-phase).
- Removable “water-bloc” lead installed — contact us for additional leads.
- UL 778 recognized (north american voltages).
- CSA certified.
- ANSI/NSF 61 certified.
- NEMA mounting dimensions.
- One year warranty.
