Description
xFountain Features
- Floating lake fountain designed for large-scale commercial application.
- Available in 10 HP, 15 HP, 20 HP and 30 HP.
- Suggested LED Lighting Packages
- 7 lights for 10 HP
- 7 lights for 15 HP
- 9 lights for 20 HP and 30 HP
| Motor HP | Center Height | Side Height | Spray Diameter |
| 10 | 25' | 8' | 35' |
| 15 | 30' | 10' | 40' |
| 20 | 35' | 12' | 45' |
| 30 | 45' | 15' | 50' |
Warranty Coverage
All Vertex floating lake fountain designs go through extensive production quality control processes as well as continued testing after installation to ensure your product lasts.
- Display heads: 4-years
- Pumps and motors: 4-years
- LED Lighting: 2-years
- Control Panel: 1-year
Description

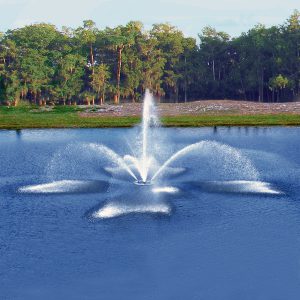

The Vertex FanJet floating fountain is a robust water feature created primarily for commercial projects such as business parks, golf courses, municipal ponds, and lakes, and similar applications. With its towering height, graceful arches, and superior wind resistance, this impressive fountain produces a dramatic water display that enhances the aesthetics of any commercial setting.
The FanJet's powerful jets have a diameter of up to 50 feet and reach a height of 45 feet. Its components are fully waterproof and made of the finest corrosion-resistant materials, guaranteeing years of reliable and high-performance use. The fountain is operated by a UL listed control panel and a heavy-duty submersible turbine pump, both designed to withstand the elements and provide consistent operation.
This fountain is engineered for efficiency and low amp draw, making it an ideal option for those who prioritize quality and durability in their water features. Its stunning design and exceptional performance make it a striking centerpiece that adds a touch of elegance to any large-scale commercial project.

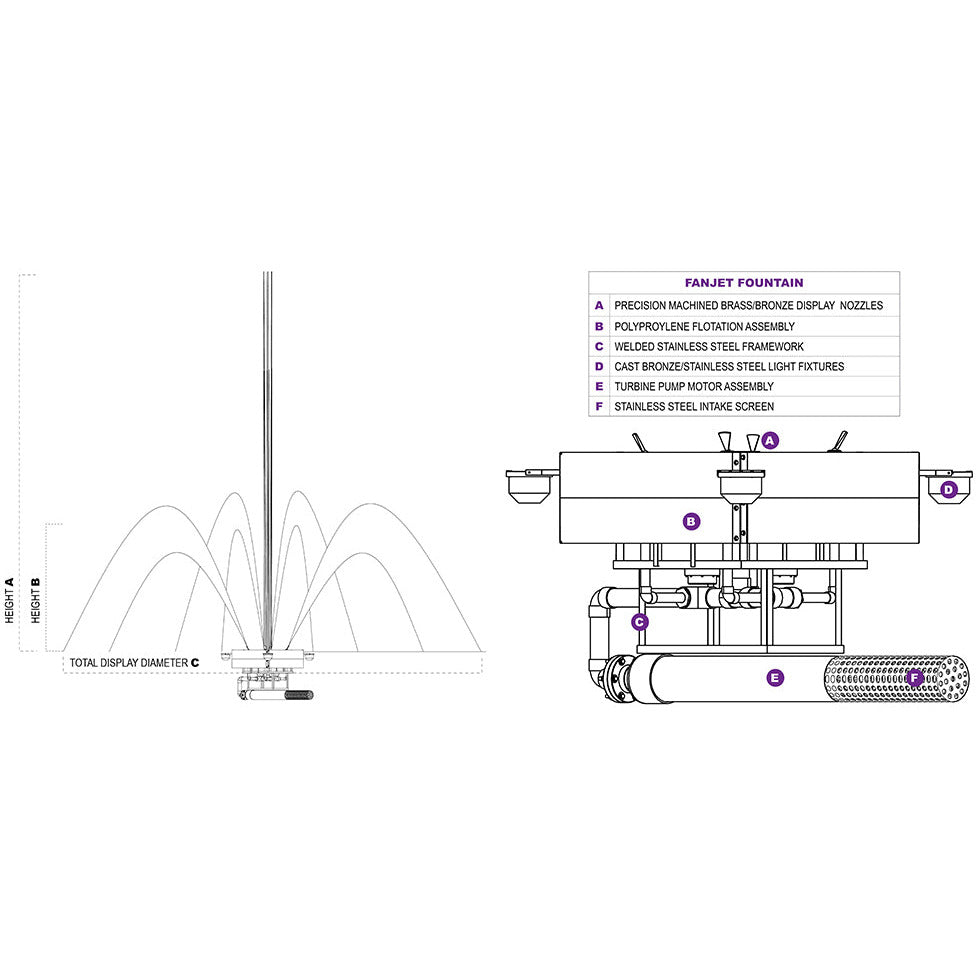

Specs
Nozzles
- Precision machined brass/bronze or stainless steel nozzles.
Pumps/Motors
- High performance turbine pump/motor assembly
- Stainless steel construction
- Water cooled: no oils, seals or o-rings to replace
- 4 year warranty
Flotation
- Rotocast polypropylene with UV inhibitors for long life
- Individual leveling compartments for exact adjustments
- 4 year warranty
Control Panel
- UL listed per National Electrical Code
- Weatherproof steel enclosures
Submersible Light Fixtures
- 43Watt, 120V clear, stainless steel LED light fixtures with tempered lens and neoprene gaskets, mounting brackets and fastenings of stainless steel
- Energy efficient LED, 140 lumens
- Stainless steel housing
- 2 year warranty
Cables
(NOT INCLUDED IN LISTED PRICE)
- Call for price on cable
- STW-A rated
- 4 year warranty
Minimum Water Depth
| Motor HP | Minimum Depth |
| 10 | 6' |
| 15 | 7' |
| 20 | 7' |
| 30 | 8' |
Electrical Specs
| Motor HP | Total Wattage | Amp Draw | Available Phase |
| 10 | 387W | 4.5 | 1,3 |
| 15 | 430W | 5 | 1,3 |
| 20 | 473W | 5.5 | 3 |
| 30 | 473W | 5.5 | 3 |
Documentation
Vertex FanJet System Specifications
Power Cable
Please see below for maximum cable lengths. All cable is sold in 25' increments.
Single Phase: 230V 60HZ
| HP | 14/4 | 12/4 | 10/4 | 8/4 | 6/4 | 4/4 | 2/4 |
| 2 | 150' | 250' | 400' | ||||
| 3 | 125' | 200' | 300' | 400' | |||
| 5 | 175' | 275' | 400' | ||||
| 7.5 | 200' | 300' | 400' | ||||
| 10 | 150' | 250' | 400' | ||||
| 15 | 200' | 300' | 400' |
3-Phase: 230V 60HZ
| HP | 14/4 | 12/4 | 10/4 | 8/4 | 6/4 | 4/4 | 2/4 |
| 2 | 275' | 400' | |||||
| 3 | 200' | 400' | |||||
| 5 | 225' | 325' | 400' | ||||
| 7.5 | 225' | 350' | 400' | ||||
| 10 | 275' | 400' | |||||
| 15 | 300' | 400' | |||||
| 20 | 200' | 350' | 400' | ||||
| 25 | 275' | 400' | |||||
| 30 | 300' |
3-Phase: 208V 60HZ
| HP | 14/4 | 12/4 | 10/4 | 8/4 | 6/4 | 4/4 | 2/4 |
| 2 | 225' | 400' | |||||
| 3 | 175' | 300' | 400' | ||||
| 5 | 175' | 300' | 400' | ||||
| 7.5 | 200' | 300' | 400' | ||||
| 10 | 225' | 350' | 400' | ||||
| 15 | 250' | 400' | |||||
| 20 | 300' | 400' | |||||
| 25 | 375' | ||||||
| 30 | 300' |
3-Phase: 460V 60HZ
| HP | 14/4 | 12/4 | 10/4 | 8/4 |
| 2 | 400' | |||
| 3 | 400' | |||
| 5 | 400' | |||
| 7.5 | 400' | |||
| 10 | 300' | 400' | ||
| 15 | 400' | |||
| 20 | 400' | |||
| 25 | 400' | |||
| 30 | 400' |
