Description
xFountain Features
- Floating lake fountain designed for large-scale commercial application.
- Available in 2 HP, 3 HP 5 HP, 7.5 HP, and 10 HP.
- Suggested LED Lighting Packages:
- 3 lights for all sizes.
| Motor HP | Spray Height | Spray Diameter |
| 2 | 6' | 25' |
| 3 | 7' | 30' |
| 5 | 8'' | 35'' |
| 7.5 | 8'' | 45' |
| 10 | 9' | 50' |
Warranty Coverage
All Vertex floating lake fountain designs go through extensive production quality control processes as well as continued testing after installation to ensure your product lasts.
- Display heads: 4-years
- Pumps and motors: 4-years
- LED Lighting: 2-years
- Control Panel: 1-year
Description

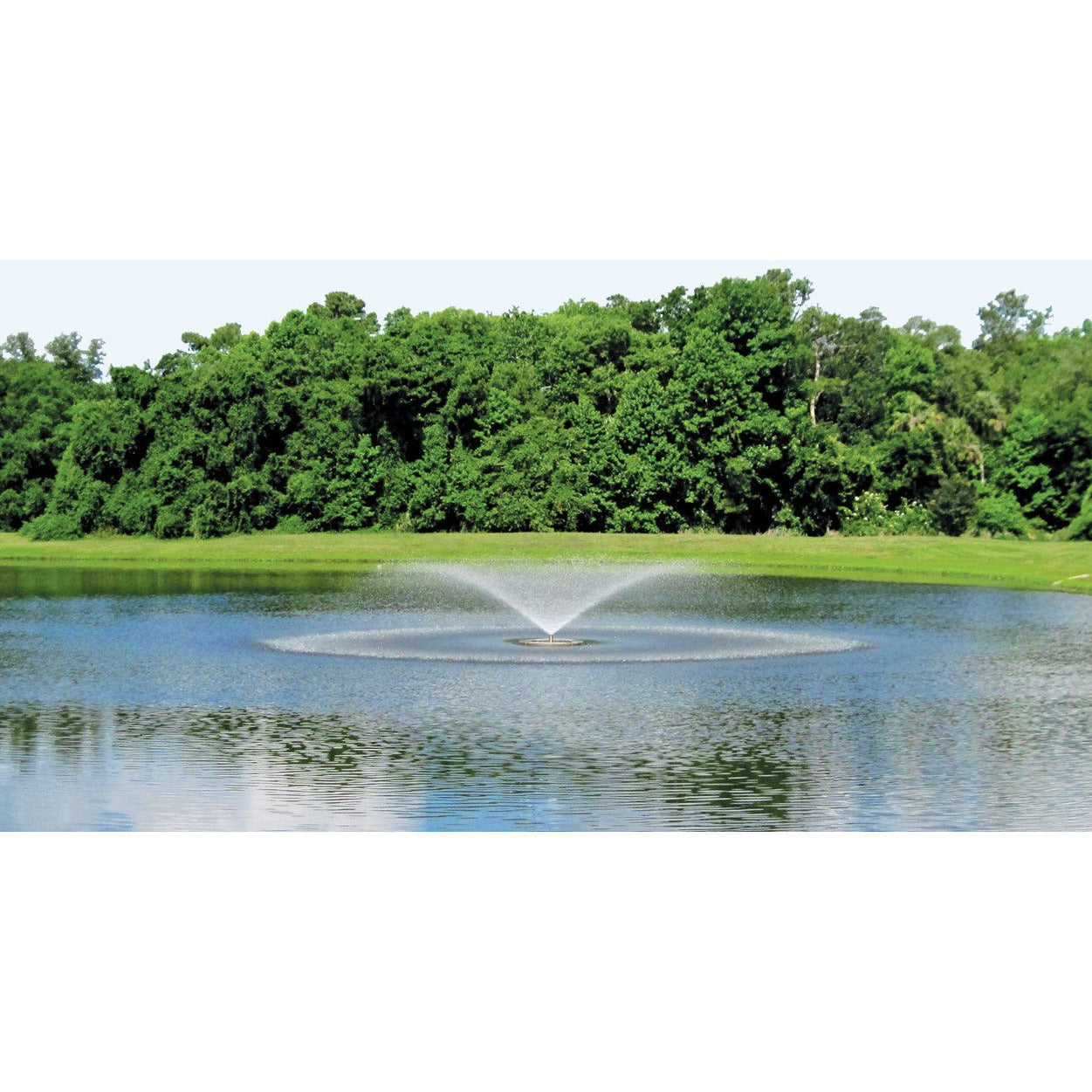

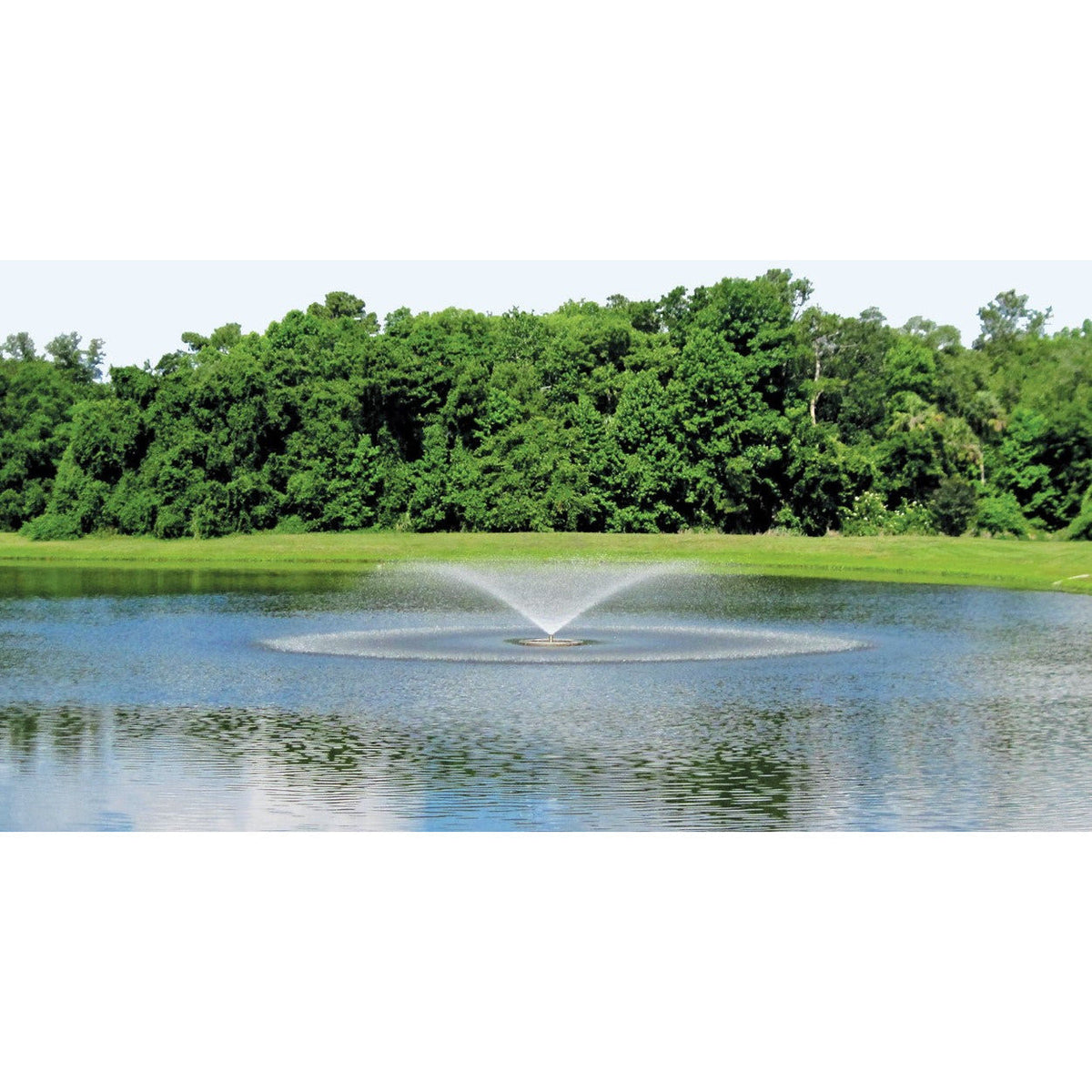

The FunnelJet floating fountain series produces a striking display of sparkling water, creating a wide ring that adds elegance and power to any lake or pond. Designed with a low profile pattern, this fountain series is perfect for those who want a water feature without obstructing the surrounding views.
Constructed with fully waterproof components made of high-quality corrosion-resistant materials, FunnelJet floating lake fountains are dependable and provide exceptional performance for years to come. All FunnelJet fountains are equipped with a UL listed control panel and heavy-duty submersible turbine pump to ensure consistent and reliable operation.

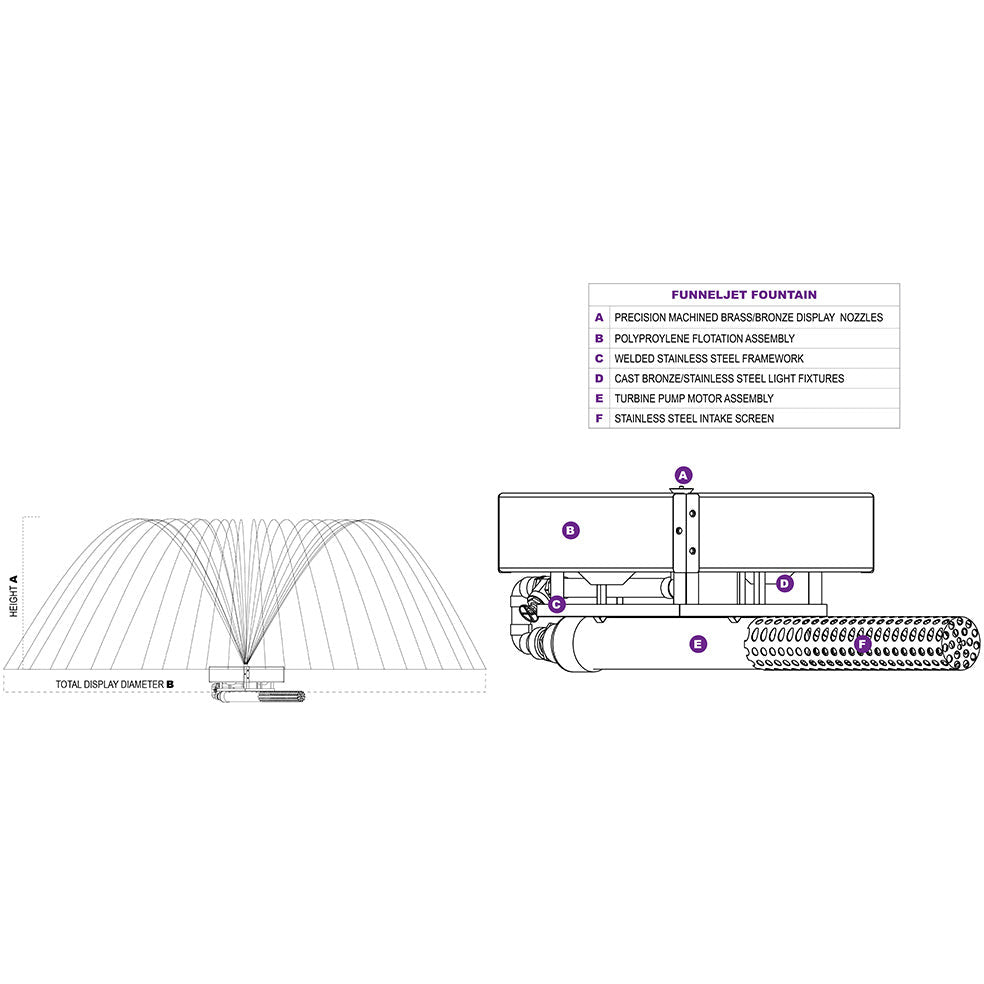

Specs
Nozzles
- Precision machined brass/bronze or stainless steel nozzles.
Pumps/Motors
- High performance turbine pump/motor assembly
- Stainless steel construction
- Water cooled: no oils, seals or o-rings to replace
- 4 year warranty
Flotation
- Rotocast polypropylene with UV inhibitors for long life
- Individual leveling compartments for exact adjustments
- 4 year warranty
Control Panel
- UL listed per National Electrical Code
- Weatherproof steel enclosures
Submersible Light Fixtures
- 43Watt, 120V clear, stainless steel LED light fixtures with tempered lens and neoprene gaskets, mounting brackets and fastenings of stainless steel
- Energy efficient LED, 140 lumens
- Stainless steel housing
- 2 year warranty
Cables
(NOT INCLUDED IN LISTED PRICE)
- Call for price on cable
- STW-A rated
- 4 year warranty
Minimum Water Depth
| Motor HP | Minimum Depth |
| 2 | 3' |
| 3 | 3' |
| 5 | 4' |
| 7.5 | 5' |
| 10 | 6' |
Electrical Specs
| Motor HP | Total Wattage | Amp Draw | Available Phase |
| 2 | 86W | 1 | 1,3 |
| 3 | 86W | 1 | 1,3 |
| 5 | 86W | 1 | 1,3 |
| 7.5 | 86W | 1 | 1,3 |
| 10 | 86W | 1 | 1,3 |
Documentation
Vertex FunnelJet System Specifications
Power Cable
Please see below for maximum cable lengths. All cable is sold in 25' increments.
Single Phase: 230V 60HZ
| HP | 14/4 | 12/4 | 10/4 | 8/4 | 6/4 | 4/4 | 2/4 |
| 2 | 150' | 250' | 400' | ||||
| 3 | 125' | 200' | 300' | 400' | |||
| 5 | 175' | 275' | 400' | ||||
| 7.5 | 200' | 300' | 400' | ||||
| 10 | 150' | 250' | 400' | ||||
| 15 | 200' | 300' | 400' |
3-Phase: 230V 60HZ
| HP | 14/4 | 12/4 | 10/4 | 8/4 | 6/4 | 4/4 | 2/4 |
| 2 | 275' | 400' | |||||
| 3 | 200' | 400' | |||||
| 5 | 225' | 325' | 400' | ||||
| 7.5 | 225' | 350' | 400' | ||||
| 10 | 275' | 400' | |||||
| 15 | 300' | 400' | |||||
| 20 | 200' | 350' | 400' | ||||
| 25 | 275' | 400' | |||||
| 30 | 300' |
3-Phase: 208V 60HZ
| HP | 14/4 | 12/4 | 10/4 | 8/4 | 6/4 | 4/4 | 2/4 |
| 2 | 225' | 400' | |||||
| 3 | 175' | 300' | 400' | ||||
| 5 | 175' | 300' | 400' | ||||
| 7.5 | 200' | 300' | 400' | ||||
| 10 | 225' | 350' | 400' | ||||
| 15 | 250' | 400' | |||||
| 20 | 300' | 400' | |||||
| 25 | 375' | ||||||
| 30 | 300' |
3-Phase: 460V 60HZ
| HP | 14/4 | 12/4 | 10/4 | 8/4 |
| 2 | 400' | |||
| 3 | 400' | |||
| 5 | 400' | |||
| 7.5 | 400' | |||
| 10 | 300' | 400' | ||
| 15 | 400' | |||
| 20 | 400' | |||
| 25 | 400' | |||
| 30 | 400' |
