Description
xFountain Features
- Floating lake fountain designed for large-scale commercial application.
- Available in 10 HP, 15 HP, 20 HP and 30 HP.
- Suggested LED Lighting Packages:
- 6 lights for for 10 HP
- 7 lights for 15 HP
- 9 lights for 20 HP and 30 HP
| Motor HP | HT 1 | HT 2 | HT 3 |
| 10 | 20' | 15' | 10' |
| 15 | 25' | 20' | 15' |
| 20 | 30' | 25' | 20' |
| 30 | 40' | 30' | 25' |
Warranty Coverage
All Vertex floating lake fountain designs go through extensive production quality control processes as well as continued testing after installation to ensure your product lasts.
- Display heads: 4-years
- Pumps and motors: 4-years
- LED Lighting: 2-years
- Control Panel: 1-year
Description

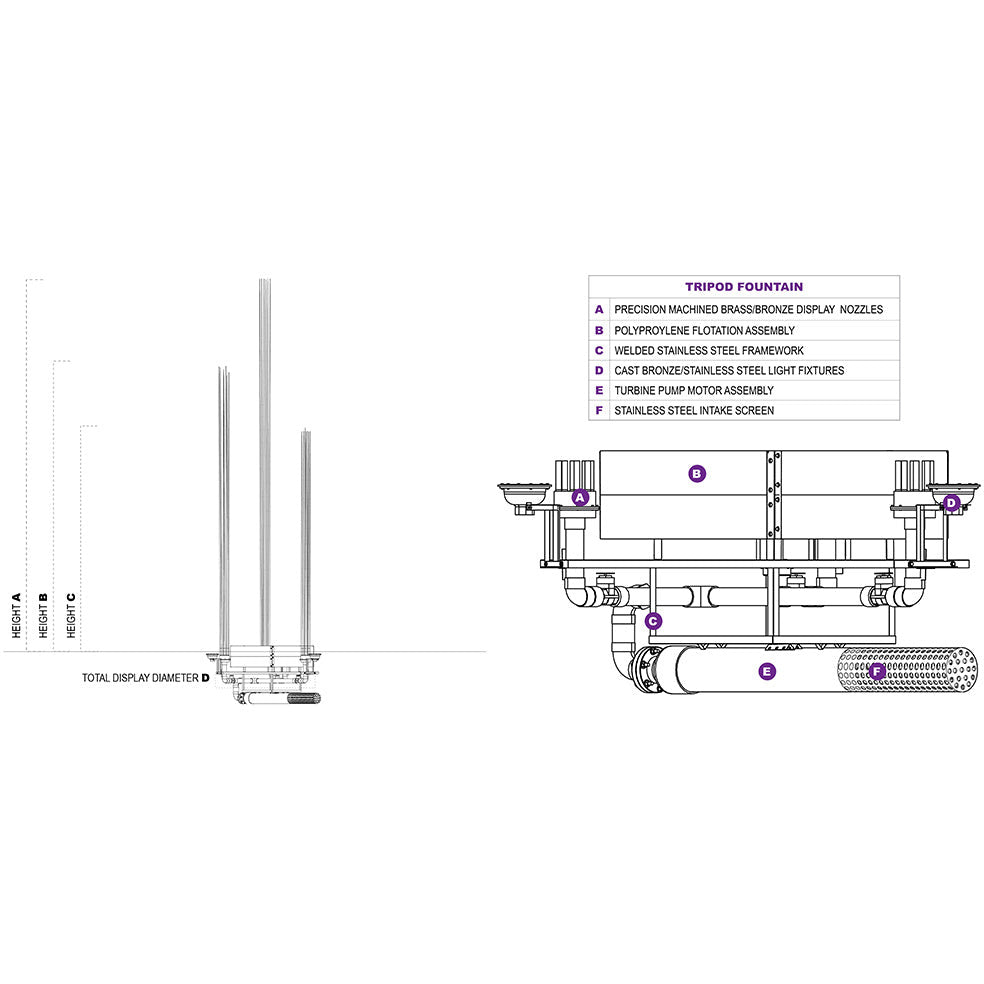

The TriPod floating fountain series features three progressive columns of frothy water, each 8" in diameter, that come together to create a truly unique and stunning water feature. The height proportions of each column can be easily adjusted on site by regulating the valves of each pod, allowing for customizable modifications.
Constructed with fully waterproof components made of high-quality corrosion-resistant materials, the TriPod floating lake fountains are designed to provide years of dependable and high-performance use. Equipped with a UL listed control panel and heavy-duty submersible turbine pump, these fountains offer reliable and consistent operation.
Specs
Nozzles
- Precision machined brass/bronze or stainless steel nozzles.
Pumps/Motors
- High performance turbine pump/motor assembly
- Stainless steel construction
- Water cooled: no oils, seals or o-rings to replace
- 4 year warranty
Flotation
- Rotocast polypropylene with UV inhibitors for long life
- Individual leveling compartments for exact adjustments
- 4 year warranty
Control Panel
- UL listed per National Electrical Code
- Weatherproof steel enclosures
Submersible Light Fixtures
- 43Watt, 120V clear, stainless steel LED light fixtures with tempered lens and neoprene gaskets, mounting brackets and fastenings of stainless steel
- Energy efficient LED, 140 lumens
- Stainless steel housing
- 2 year warranty
Cables
(NOT INCLUDED IN LISTED PRICE)
- Call for price on cable
- STW-A rated
- 4 year warranty
Minimum Water Depth
| Motor HP | Minimum Depth |
| 10 | 6' |
| 15 | 7' |
| 20 | 7' |
| 30 | 8' |
Electrical Specs
| Motor HP | Total Wattage | Amp Draw | Available Phase |
| 10 | 258W | 3 | 1,3 |
| 15 | 301W | 3.5 | 1,3 |
| 20 | 387W | 4.5 | 3 |
| 30 | 387W | 4.5 | 3 |
Documentation
Vertex TriPod System Specifications
Power Cable
Please see below for maximum cable lengths. All cable is sold in 25' increments.
Single Phase: 230V 60HZ
| HP | 14/4 | 12/4 | 10/4 | 8/4 | 6/4 | 4/4 | 2/4 |
| 2 | 150' | 250' | 400' | ||||
| 3 | 125' | 200' | 300' | 400' | |||
| 5 | 175' | 275' | 400' | ||||
| 7.5 | 200' | 300' | 400' | ||||
| 10 | 150' | 250' | 400' | ||||
| 15 | 200' | 300' | 400' |
3-Phase: 230V 60HZ
| HP | 14/4 | 12/4 | 10/4 | 8/4 | 6/4 | 4/4 | 2/4 |
| 2 | 275' | 400' | |||||
| 3 | 200' | 400' | |||||
| 5 | 225' | 325' | 400' | ||||
| 7.5 | 225' | 350' | 400' | ||||
| 10 | 275' | 400' | |||||
| 15 | 300' | 400' | |||||
| 20 | 200' | 350' | 400' | ||||
| 25 | 275' | 400' | |||||
| 30 | 300' |
3-Phase: 208V 60HZ
| HP | 14/4 | 12/4 | 10/4 | 8/4 | 6/4 | 4/4 | 2/4 |
| 2 | 225' | 400' | |||||
| 3 | 175' | 300' | 400' | ||||
| 5 | 175' | 300' | 400' | ||||
| 7.5 | 200' | 300' | 400' | ||||
| 10 | 225' | 350' | 400' | ||||
| 15 | 250' | 400' | |||||
| 20 | 300' | 400' | |||||
| 25 | 375' | ||||||
| 30 | 300' |
3-Phase: 460V 60HZ
| HP | 14/4 | 12/4 | 10/4 | 8/4 |
| 2 | 400' | |||
| 3 | 400' | |||
| 5 | 400' | |||
| 7.5 | 400' | |||
| 10 | 300' | 400' | ||
| 15 | 400' | |||
| 20 | 400' | |||
| 25 | 400' | |||
| 30 | 400' |
