Description
xFountain Features
- Floating lake fountain designed for large-scale commercial application.
- Available in 2 HP, 3 HP and 5 HP.
- Suggested LED Lighting Packages:
- 3 lights for all sizes.
| Motor HP | Spray Height | Spray Diameter |
| 2 | 6' | 25' |
| 3 | 7' | 30' |
| 5 | 8'' | 35'' |
Warranty Coverage
All Vertex floating lake fountain designs go through extensive production quality control processes as well as continued testing after installation to ensure your product lasts.
- Display heads: 4-years
- Pumps and motors: 4-years
- LED Lighting: 2-years
- Control Panel: 1-year
Description
The Vertex Vertical Pond Fountain models were developed using the same strict standards as our larger models and are covered under the same warranty program with 4 year coverage for display heads, pumps and motors, 2 years on LED lighting and 1 year for the control panel.
- Competitively priced
- Quicker installations with a self leveling design
- Smaller profile/lower weight makes handling easier and reduces freight costs
- Lower maintenance costs with no oils, 0-rings or seals to change

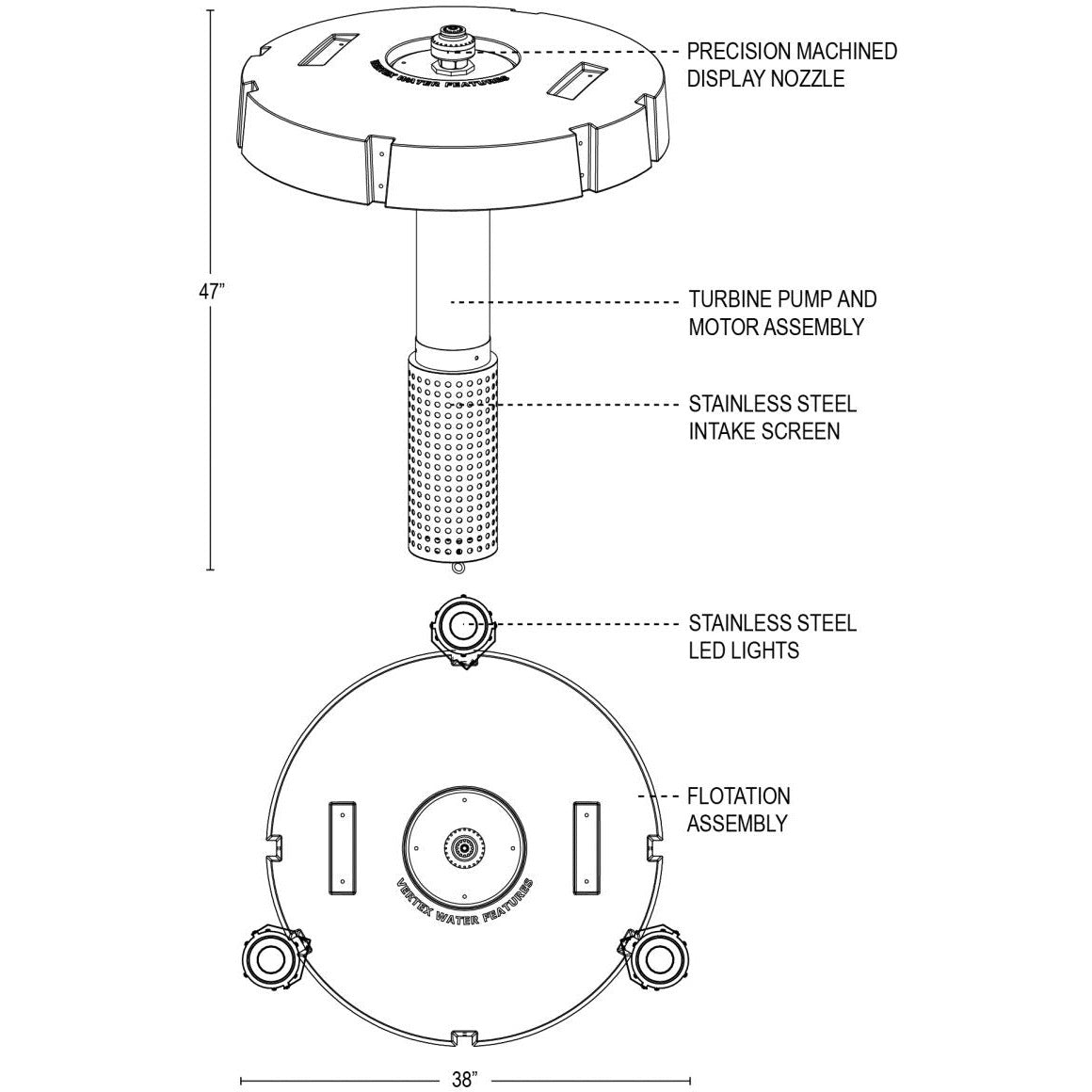

Quality and Durability
- Rugged, commercial grade construction stainless steel turbine pumps/motors
- Precision machined brass/stainless steel display nozzles with defined patterns
- Customize your displays and/or controls
- Stainless steel LED lights
Specs
Nozzles
- Precision machined stainless steel nozzles.
Pumps/Motors
- High performance turbine pump/motor assembly
- Stainless steel construction
- Water cooled: no oils, seals or o-rings to replace
- 4 year warranty
Flotation
- Rotocast polypropylene with UV inhibitors for long life
- Individual leveling compartments for exact adjustments
- 4 year warranty
Control Panel
- UL listed per National Electrical Code
- Weatherproof steel enclosures
Submersible Light Fixtures
- 43Watt, 120V clear, stainless steel LED light fixtures with tempered lens and neoprene gaskets, mounting brackets and fastenings of stainless steel
- Energy efficient LED, 140 lumens
- Stainless steel housing
- 2 year warranty
Cables
(NOT INCLUDED IN LISTED PRICE)
- Call for price on cable
- STW-A rated
- 4 year warranty
Minimum Water Depth
| Motor HP | Minimum Depth |
| 2 | 6.5' |
| 3 | 6.5' |
| 5 | 6.5' |
Electrical Specs
| Motor HP | Total Wattage | Amp Draw | Available Phase |
| 2 | 86W | 0.8 | 1,3 |
| 3 | 86W | 0.8 | 1,3 |
| 5 | 86W | 0.8 | 1,3 |
Documentation
Vertex Vertical Pond Fountains Sales Sheet
Vertex Vertical FunnelJet System Specifications
Vertex Vertical Fountain Manual
Power Cable
Please see below for maximum cable lengths. All cable is sold in 25' increments.
Single Phase: 230V 60HZ
| HP | 14/4 | 12/4 | 10/4 | 8/4 | 6/4 | 4/4 | 2/4 |
| 2 | 150' | 250' | 400' | ||||
| 3 | 125' | 200' | 300' | 400' | |||
| 5 | 175' | 275' | 400' | ||||
| 7.5 | 200' | 300' | 400' | ||||
| 10 | 150' | 250' | 400' | ||||
| 15 | 200' | 300' | 400' |
3-Phase: 230V 60HZ
| HP | 14/4 | 12/4 | 10/4 | 8/4 | 6/4 | 4/4 | 2/4 |
| 2 | 275' | 400' | |||||
| 3 | 200' | 400' | |||||
| 5 | 225' | 325' | 400' | ||||
| 7.5 | 225' | 350' | 400' | ||||
| 10 | 275' | 400' | |||||
| 15 | 300' | 400' | |||||
| 20 | 200' | 350' | 400' | ||||
| 25 | 275' | 400' | |||||
| 30 | 300' |
3-Phase: 208V 60HZ
| HP | 14/4 | 12/4 | 10/4 | 8/4 | 6/4 | 4/4 | 2/4 |
| 2 | 225' | 400' | |||||
| 3 | 175' | 300' | 400' | ||||
| 5 | 175' | 300' | 400' | ||||
| 7.5 | 200' | 300' | 400' | ||||
| 10 | 225' | 350' | 400' | ||||
| 15 | 250' | 400' | |||||
| 20 | 300' | 400' | |||||
| 25 | 375' | ||||||
| 30 | 300' |
3-Phase: 460V 60HZ
| HP | 14/4 | 12/4 | 10/4 | 8/4 |
| 2 | 400' | |||
| 3 | 400' | |||
| 5 | 400' | |||
| 7.5 | 400' | |||
| 10 | 300' | 400' | ||
| 15 | 400' | |||
| 20 | 400' | |||
| 25 | 400' | |||
| 30 | 400' |
